Model Number: | DK Series |
---|---|
Brand Name: | YunYi |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Description

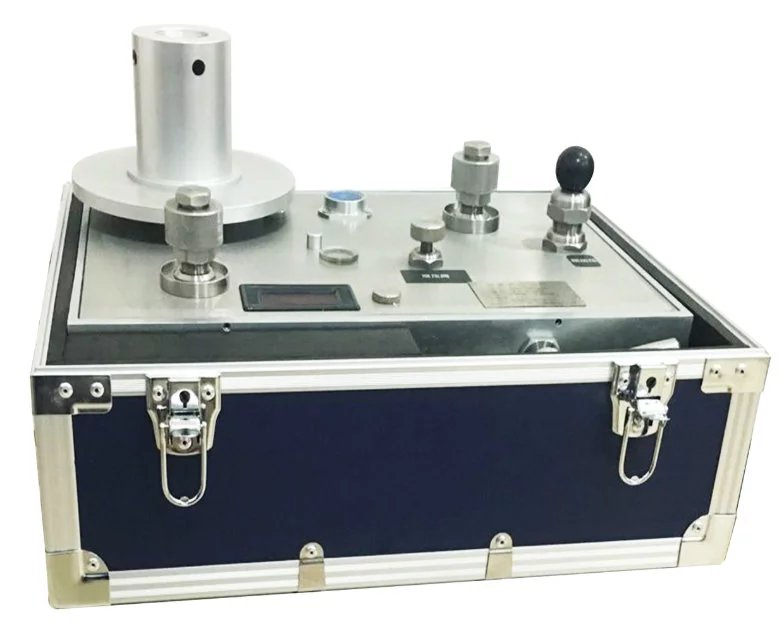

DK series piston type pressure gauge is in our factory YS series Piston manometer, KY series piston type pressure gauge, on the basis of Structural optimization, with super abrasion and perfect reliability.DK Series piston pressure gauge the progress of 0.005%;160 mpa. the maximum Range of DK series adopts modular structure, a platform can install Different piston system, achieve the goal of economical and practical
Specifications
DKHH uncertainty:0.005%rdg( Medium: sebacic acid ester ) | |
DKHH0025 | (0.1—2.5)MPa |
DKHH0006 | (0.04—0.6)MPa |
DKHH0060 | (0.1—6)MPa |
DKHH0600 | (1—60)MPa |
DKLP0100 | (1—100)MPa |
DKHH uncertainty :0.02%rdg ( Medium: sebacic acid ester ) | |
DKHH2025 | (0.1—2.5)MPa |
DKHH0006 | (0.04—0.6)MPa |
DKHH0060 | (0.1—6)MPa |
DKHH0600 | (1—60)MPa |
DKLP0100 | (1—100)MPa |
DKHH uncertainty :0.05%rdg ( Medium: sebacic acid ester ) | |
DKHH5025 | (0.1—2.5)MPa |
DKHH5006 | (0.04—0.6)MPa |
DKHH5060 | (0.1—6)MPa |
DKHH5600 | (1—60)MPa |
DKHH5100 | (1—100)MPa |
DKHH uncertainty :0.02%rdg ( Medium: sebacic acid ester ) | |
DKHH2025W | (0.1—2.5)MPa |
DKHH2006W | (0.04—0.6)MPa |
DKHH2060W | (0.1—6)MPa |
DKHH2600W | (1—60)MPa |
DKHH uncertainty :0.05%rdg ( Medium: distilled water ) | |
DKHH5025W | (0.1—2.5)MPa |
DKHH5006W | (0.04—0.6)MPa |
DKHH5060W | (0.1—6)MPa |
DKHH5600W | (1—60)MPa |
