Speed limiter features:

1 Speed Limiter

Enforce to limit the speed of your vehicle if preset maximum speed



2 Tamper proof

Maximum speed is 40km/h if maximum speed is tampered or sensor is cut.



3 Download data

Data can be stored for 72 hours at interval of 5 seconds.

Data can be retrieved by connecting device to computer via USB data port



4 Bluetooth Printer

Violations can be printed out for the last one-hour driving. Portable printer prevents drivers from printing

Speed violations can be printed



5 Violations alarm

All violations will be transmitted to platform.



6 over speed alarm

When vehicle reaches 95% of preset speed limit, built-in buzzer shall make sound alarm to warn driver.



7 Fuel monitoring (optional)

Monitor vehicle fuel consumption. Need connect with fuel sensor that gives out analog voltage.

Real time fleet tracking Working power: 2W



GPS speed limiter specs:

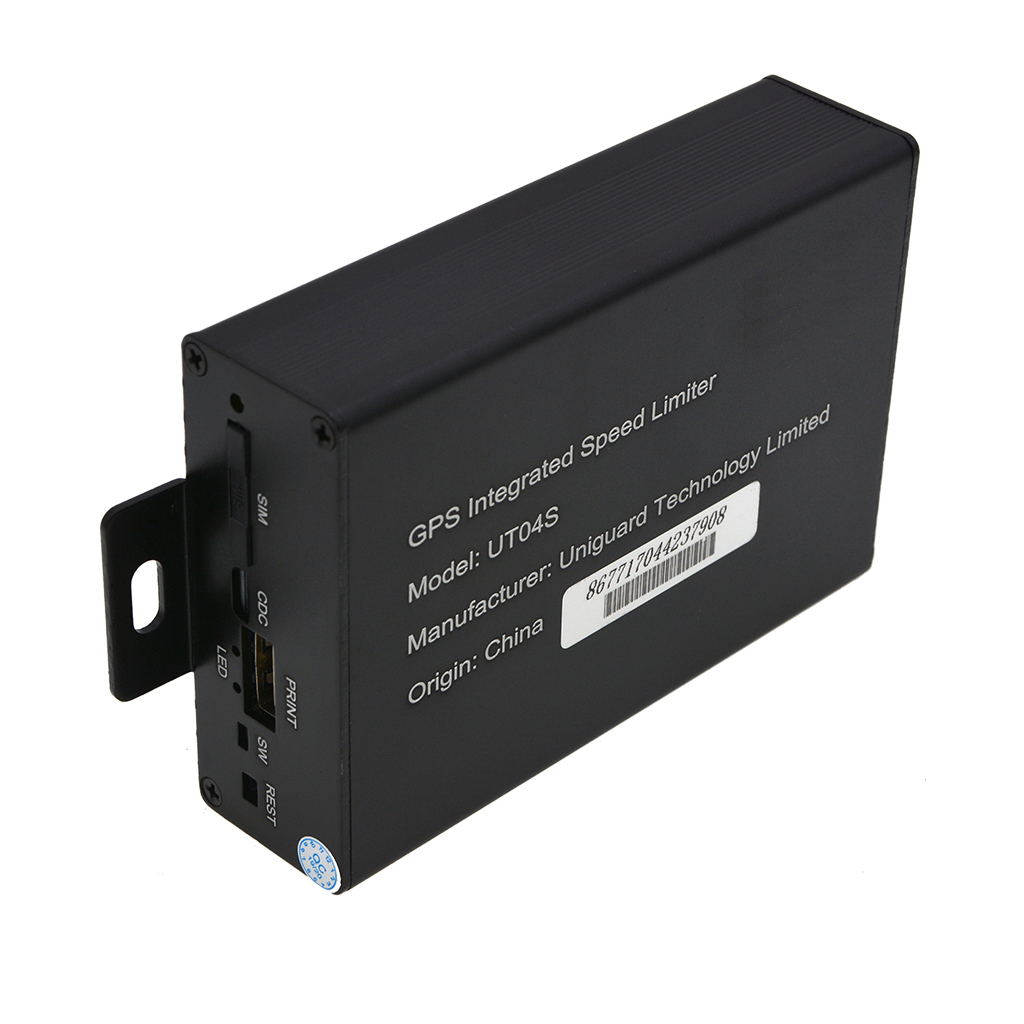

Name	UT04S GPS Speed Limiter
Weight	191g
Dimension	110*75*30 mm
Working voltage	DC 9V-36V
Backup battery	800mAh 3.7V
Battery working time	4hrs
Working current	60~150mA
Standby current	16mA
Charging current	Max < 500mA
Input Fuse	2A
Working power	2W
Working Temp.	-45~85℃
GSM Frequency	850/900/1800/1900 Mhz
Max RF output	33.0dBm±2dBm
Dynamic input range	-15 ~ -102dBm
GPS chipset	Ublox 7
GPS frequency	L1, 1575.42 MHz
GPS accuracy	5 meters at 2D RMS
Interface	1 A/D Port for fuel monitoring
	1 Interface for data config by PC
	1 USB port for USB disk data download
	2Port for speed limit
	1 Input for speed signal
	1 Input for Bluetooth Printing control
Built in Flash	Store data of last 72hrs, above 5000 points
Built in Buzzer	Sound alarm when speed reaches 95% of set value
Alarm	External power cut, Lower battery, over speed, Geo-fence
Tracking method	Real time on Web Software and Phone APP
Account level	Unlimited sub account management
Report	Trip report, Speed report, Geo-fence report, Parking report, Driving Report, Alarm report, Mileage report, Engine Idle report



GPS speed limiter connection:



ACC:(Orange)Connected to vehicle ACC wire to detect engine ON/off

PULSE: (Purple)Connected to vehicle speed signal wire to detect speed

GND / DC+: (RedandBlack) connected to battery positive and ground.



GND / SOS: connected together with SOS button to control wireless printing.(with wireless Bluetooth printer turned on, press SOS button for 3 seconds, device shall beep, in 15 seconds device shall print last 1 hr data including over speed data. Long beep once all data is printed.)



NC / NO: (Green/Yellow)Cut off fuel pump power wire, connect NOYellowWire to the cut point, working as a power supply to fuel pump. (Relay and buzzer are built-in, when speed reaches 95% preset value, beep; 100% speed reached, built-in relay is activated with continuous beep.



Fuel(Grey) connect with fuel sensor signal wire to monitor(Optional)



SIM slot:Insert SIM card

Micro USB:Connect device to PC for config

USB disk:Insert USB disk for data download (beep sound after inserting, long beep once all data is downloaded.)



SW:Built-in backup battery switch. (Default off)

RESET: one click to restart device



LED:Blue for GPS (on if signal okay), Green for GSM (slow flash if signal okay)
