| Warranty: | one year |
|---|---|
| Brand Name: | BSIT |
| Control Mode: | Semi-Automatic |
| Capacity: | 4500Tablets/hour |
| Condition: | New |
| After-sales Service Provided: | No overseas service provided |
| Certification: | meet GMP standard |
| Weight: | 145 |
| Dimension(L*W*H): | 680*500*750 |
| Model Number: | TDP-5 |
| Place of Origin: | China (Mainland) |
| standard mould: | 6mm diameter |
Quick Details
Specifications

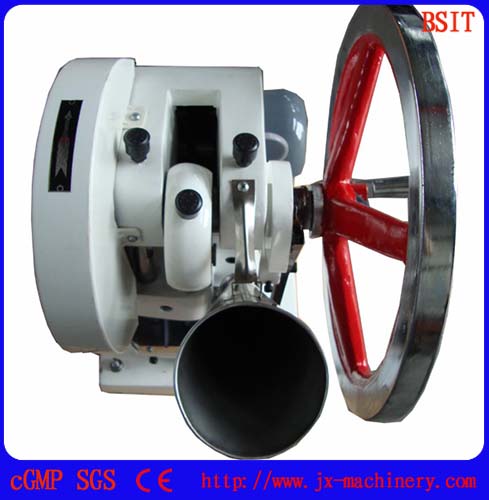

Single Desktop Tablet Press (TDP-5)
Tag: single tablet press, desktop tablet press, pharmaceutical tablet press, round tablet press, laboraotry tablet press
Main application:
this TDP-5 Single Desktop Tablet Press is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. both filling depth of material and thickness of tablet are adjustable.
Technical data:
|
Model |
TDP-1.5 | TDP-5 | TDP-6 |
|
Max. Pressure (kN) |
15 | 50 | 60 |
|
Max. dia. of tablet (mm) |
12 | 20 | 25 |
|
Max. Depth of fill (mm) |
12 | 16 | 16 |
|
Thickness of largest tablet (mm) |
6 | 6 | 6 |
|
Production capacity (pcs/h) |
5000 | 4500 | 5000 |
|
. Motor (KW) |
0.55 | 0.75 | 1.1 |
|
Overall size(mm) |
700*370*800 | 700*400*800 | 700*500*900 |
|
Net weight |
90 | 125 | 140 |
Sample:
