| Place of Origin: | China (Mainland) |
|---|---|
| Type: | Electric |
| Use: | Standard Battery |
| Model Number: | XSG1265000 |
| Brand Name: | XinsuGlobal |
| Product name: | 3S lithium ion battery charger |
| Output Voltage: | 12.6V |
| Output Current: | 5A |
| Charge Mode: | Three-stage, CC~CV |
| LED indicator: | Red-charging, Green-finished |
| Dimension: | 116*52*34mm |
| Color: | Black |
| Certificates: | UL cUL FCC PSE CE GS LVD SAA RCM C-tick CCC |
| Warranty: | 3 Years |
| Usage: | For 11.1v 18650 battery pack |
Quick Details
Specifications

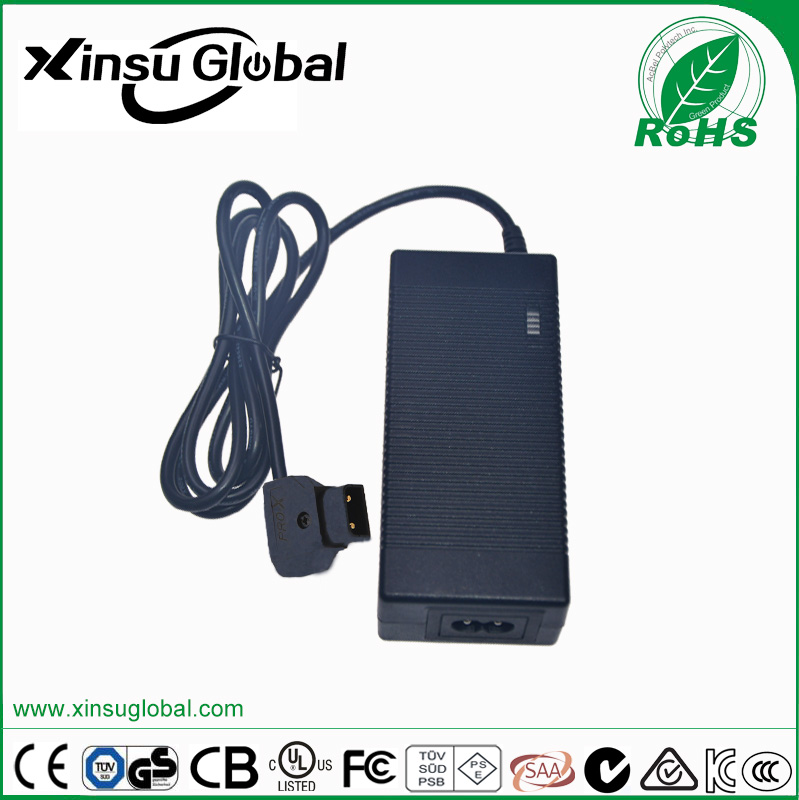

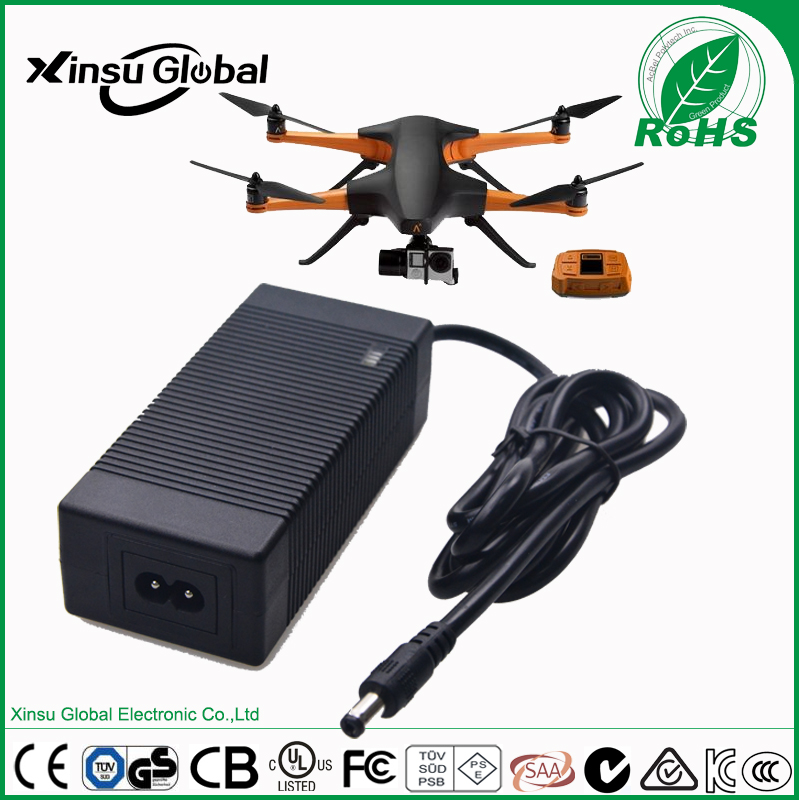

CC~CV charge mode 3S li ion battery charger 12.6v 5a
Product Features:
Input |
100-240VAC,50/60HZ |
Input inlet |
IEC-320-C6;IEC-320-C8;IEC-320-C14 |
Output |
12.6VDC,3A |
Output plug |
Customized |
Efficiency |
≥87.497% |
No Load |
Power Consumption ≤0.1W |
Protection |
Polarity protection;OVP;OCP;SCP |
Charge Mode |
CC~CV |
LED |
Charging status: Red/Charging;Green/Finished |
HIPOT |
3KVAC,5mA,60s |
MTBF |
50,000HRS |
Operating |
Temperature -20℃~ +45℃ |
Storage |
Temperature -30℃~ +70℃ |
Dimension |
116mm*52mm*34mm |
Net Weight |
0.25KG/PC |
Package |
White Box,50pcs/CTN |
MOQ |
200pcs |
Lead Time |
Sample:5days,Mass production:15-20days |
Safety Standards |
UL60950-1,CSA C22.2,IEC60950-1,as/NZS60950,GB4943,EN60950, |
Certificates |
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,LVD,EMC,KC,RCM,SAA,C-Tick,PSB |
Energy Consumption |
DOE:Ⅵ;Erp;Nrcan;MEPS |
Environmental |
Protection: RoHS,REACH |
Markets |
Worldwide |
Remarks:
- Warranty Period: 24 months
- Trade Currency:RMB,USD,HKD
- Payment Terms:T/T, Paypal, Western Union
- Delivery Methods:Shipping, Air and Express Supported(Free in Guangdong Province)
Product Recommendation:
|
INPUT |
| ||
Vac |
W |
Vdc |
mA | |
XSG1260300zz |
100～240 |
3.8 |
12.6 |
300 |
XSG1260400zz |
100～240 |
5.0 |
12.6 |
400 |
XSG1260500zz |
100～240 |
6.3 |
12.6 |
500 |
XSG1260600zz |
100～240 |
7.6 |
12.6 |
600 |
XSG1260700zz |
100～240 |
8.8 |
12.6 |
700 |
XSG1260800zz |
100～240 |
10.1 |
12.6 |
800 |
XSG1260900zz |
100～240 |
11.3 |
12.6 |
900 |
XSG1261000zz |
100～240 |
12.6 |
12.6 |
1000 |
XSG1261200zz |
100～240 |
15.1 |
12.6 |
1200 |
XSG1261500zz |
100～240 |
18.9 |
12.6 |
1500 |
XSG1261800zz |
100～240 |
22.7 |
12.6 |
1800 |
XSG1262000zz |
100～240 |
25.2 |
12.6 |
2000 |
XSG1262500zz |
100～240 |
31.5 |
12.6 |
2500 |
XSG1263000zz |
100～240 |
37.8 |
12.6 |
3000 |
XSG1263500zz |
100～240 |
44.1 |
12.6 |
3500 |
XSG1264000zz |
100～240 |
50.4 |
12.6 |
4000 |
XSG1264500zz |
100～240 |
56.7 |
12.6 |
4500 |
XSG1265000zz |
100～240 |
63.0 |
12.6 |
5000 |
"XSG" stands for Xinsu Global Electronic Co.,Limited
Variable " xxx" = 036-588, can be 036-588 to denote different output voltage,(3.6V~58.8V).
Variable " yyyy" = 0100-7000,can be 0100-7000 to denote different output current,(100mA~7000mA).
Class II Variable " zz" = Sales markets,like EU for Europe, US for USA, CN for China, JP for Japan,
Blank or WW for worldwide etc;
