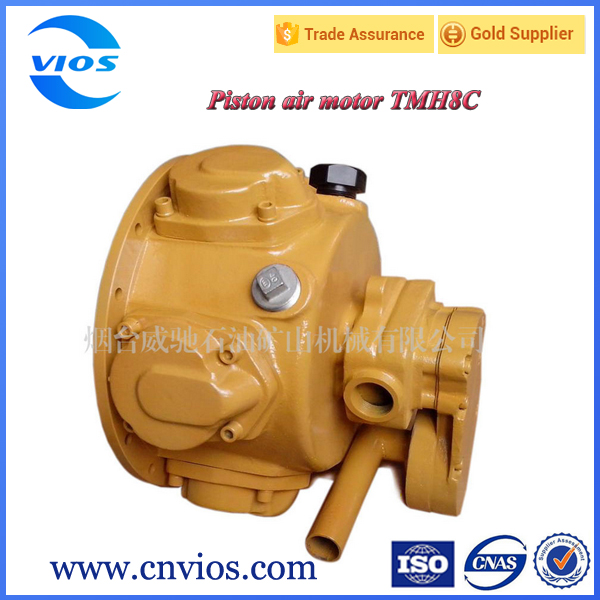

Pneumatic power source piston air motor TMH8C with competitive price



Working Principle:

TMH8C Piston air motor is operated on the basis of the following principles. after entering into the air distribution system(valve core and valve Sleeve), the compressed air is accordingly delivered into cylinders, Expanding to push the piston reciprocating; the pistons then drive the Shaft and crank journal reciprocation and finally output driving power.



Application places:

Widely Used in mining, oilfields, constructions, smelting, paper making, Pharmacy, chemicals, etc,. this motor is ideal mated driving machine for Large-scale drilling machines.



Feacture:

1. Step less in speed, adjusting air volume to change rotate speed and power.

2. Change Air-inlet and air-outlet direction to rotate and counter-rotate the Motor in short time, with no impact and even not need to relieve the Load.

3. the Equipped anti-load function enables the motor to rotate at low speed When overload, and regain high speed when overload relived.

4. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.

5. Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.

6. High starting torque enables starting with load, fast and reliable to start and stall.



Technical data:



Working           Pressure	No-load      speed	Rated       Speed	Rated       Power	Air    Consumption
MPa	r/min	r/min	kW	L/s
0.4	1000	690	5.5	96.2
0.5	1100	750	7.5	120
0.63	1200	800	10	148
0.7	1300	850	12	172
