Model Number: | HG-602PC-4 |
---|---|
Brand Name: | OEM |
Place of Origin: | China (Mainland) |
Quick Details
Specifications

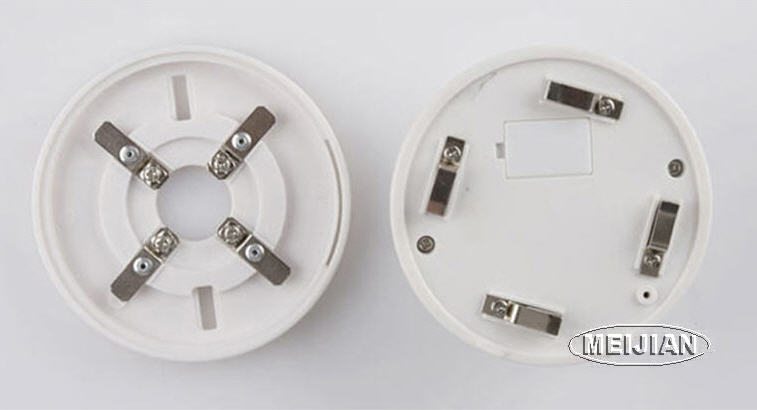

4wired network Potoelectric smoke alarm detector with realy output
Specifications:
Power supply non-polar input:DC 9V~35V
Stainless steel shield,Anti-RFI;SMT adopted,high stability.
Dustproof,mothproof and anti-light interference design.
MCU processing adopted,eliminate false alarm.
Remote LED indicator.
Power-off reset.
Relay output,NO/NC
Detection sensitivity:2.06%/ft
Dimension: Φ104*51mm.
Photoelectric sensor
Red LED indicator
High sensitivity
Technical Parameter:
Product Type | 2 wire | 4 wire |
Standby current | 55uA | 500uA(Relay N.O) 12mA(Relay N.C) |
Alarm current | 35mA@DC12V 60mA@DC24V | 18mA(Relay N.O) 10mA(Relay N.C) |
Alarm indication | Red LED on | |
Temperature range | .-10°C-+50°C | |
Humidity | 0%-95%RH(NO CONDENSATION) | |
Alarm output | Remote LED | Relay output |
Contact rating | N/A | 0.5A@DC28V |
Sensitivity | 0.5dB/m(±0.1dB/m) | |
Dimension | 103mm diameter *53mm deep |
