| Model Number: | opgw |
|---|---|
| Brand Name: | KSD |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

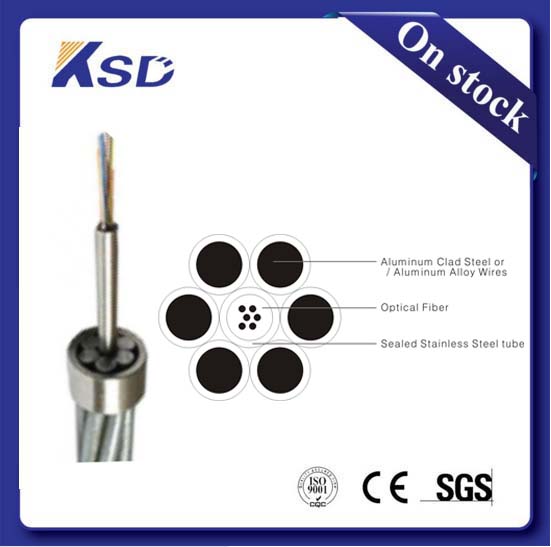

Central Stainless Steel Tube Single Mode ground wire Opgw fiber optic cable
The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.
Characteristic:
1. High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability .
2. Engineering support supervising and providing its own line of accessories hardware .
3.Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lightening
4. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv;
5. Apply to the transformation of old lines.
Standards:
|
ITU-TG.652 |
Characteristics of a single mode optical fiber |
|
ITU-TG.655 |
Characteristics of a non-zero dispersion -shifted single mode fibers optical |
|
EIA/TIA598 B |
Col code of fiber optic cables |
|
IEC 60794-4-10 |
Aerial optical cables along electrical power lines-family specification for OPGW |
|
IEC 60794-1-2 |
Optical fiber cables -part test procedures |
|
IEEE1138-2009 |
IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines
|
|
IEC 61232 |
Aluminum -Clad steel wire for electrical purposes |
|
IEC60104 |
Aluminum magnesium silicon alloy wire for overhead line conductors |
|
IEC 61089 |
Round wire concentric lay overhead electrical stranded conductors . |
Typical design for Single Layer:
|
Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
|
OPGW-32(40.6;4.7) |
12 |
7.8 |
243 |
40.6 |
4.7 |
|
OPGW-42(54.0;8.4) |
24 |
9 |
313 |
54 |
8.4 |
|
OPGW-42(43.5;10.6) |
24 |
9 |
284 |
43.5 |
10.6 |
|
OPGW-54(55.9;17.5) |
36 |
10.2 |
394 |
67.8 |
13.9 |
|
OPGW-61(73.7;175) |
48 |
10.8 |
438 |
73.7 |
17.5 |
|
OPGW-61(55.1;24.5) |
48 |
10.8 |
358 |
55.1 |
24.5 |
|
OPGW-68(80.8;21.7) |
54 |
11.4 |
485 |
80.8 |
21.7 |
|
OPGW-75(54.5;41.7) |
60 |
12 |
459 |
63 |
36.3 |
|
OPGW-76(54.5;41.7) |
60 |
12 |
385 |
54.5 |
41.7 |
Typical design for Double Layer:
|
Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
|
OPGW-96[121.7;42.2] |
12 |
13 |
671 |
121.7 |
42.2 |
|
OPGW-127[141.0;87.9] |
24 |
15 |
825 |
141 |
87.9 |
|
OPGW-127[77.8;128.0] |
24 |
15 |
547 |
77.8 |
128 |
|
OPGW-145(121.0;132.2) |
28 |
16 |
857 |
121 |
132.2 |
|
OPGW-163(138.2;183.6) |
36 |
17 |
910 |
138.2 |
186.3 |
|
OPGW-163(99.9;213.7) |
36 |
17 |
694 |
99.9 |
213.7 |
|
OPGW-183(109.7;268.7) |
48 |
18 |
775 |
109.7 |
268.7 |
|
OPGW-183(118.4;261.6) |
48 |
18 |
895 |
118.4 |
261.6 |
Note:
1. Only a part of OPGW cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
