Gewei Repeater, Cheap GSM Cellular Signal  booster,Cellular Signal booster , Indoor Four Band 700 850 1900 2100 MHZ Signal Repeater / Booster/Amplifier

PR-X4-C1 cellular signal booster is a small size, easy-to-use signal amplifier that boosts the signals for cellular devices wherever you need. It covers Band/4/5/17/25 simultaneously. It improves the communication quality of your devices where the area covers 200 square meters in public places or offices at the minimum cost, prolongs their battery life and, moreover, helps you to build a healthier environment by reducing undesirable radiation exposure on your premise since your devices no longer need to search for signals all the time.

Features:

1)     Support voice and high-speed data service in 2G&3G&4G mode

2)     Automatically detect isolation between transmitting and receiving antennas, and then adjust gain intelligently to avoid self-oscillates; meanwhile eliminate the impact within a network.

3)     MGC control function, it can adjust area coverage flexibility.

4)     Real-time monitoring the working status of product by LED lamp.

5)     Smart size, easy to install.

Meet the demand of the ROHS and FCC certification

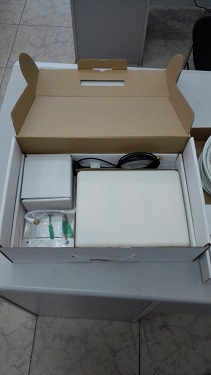

Standard Package:

1)     Main equipment

2)     Power adapter

3)     Donor Antenna: Wall-mounted antenna

4)     Service Antenna: Pen terminal antenna

5)     30 feet LMR200 cable

Optional Accessories:

1)     Donor Antenna: Log-periodic antenna with 10 dBi

2)     Service Antenna: Ceiling antenna or Wall-mounted antenna

3)     Cables: Optional cable with the length of 20 feet, 30 feet or 40 feet.



Application:

How to install the signal booster?

Specification:

1)     Electrical Specifications

Frequency	700MHz Band17	850MHz Band5	2100MHz Band4	1900MHz Band25/2
Mode	GSM/CDMA/WCDMA/FDD-LTE
Gain	55dB	55dB	60dB	60dB
AGC Range	≥12dB
MGC Range	≥15dB
Noise Power	Meet FCC standards
Intermodulation	Meet FCC standards
Conducted emissions	Meet FCC standards
Radiated emissions	Meet FCC standards

2)    Mechanical Specifications

	SMA-K
	50 ohm
Operating temperature	-10℃~+45℃
Power supply	AC 90~240V, 50/60 Hz
Protection Level	IP40
Dimension	138mm*108mm*25mm(Main equipment)
Weight	≤1.1kg(Contain accessories)
