| Type: | Multi-Function Packaging Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO9001 |
| Dimension(L*W*H): | 3000X1200X2500 |
| Model Number: | LCS-LX |
| Brand Name: | m&j mACHINERY |
| Place of Origin: | China (Mainland) |
| Power: | 3.3KW |
| Voltage: | 220v/380V cUSTOMIZED |
| Driven Type: | Electric |
| Automatic Grade: | Semi-Automatic |
| Packaging Material: | Wood |
| Packaging Type: | Bags,Barrel,kraft bag,pp woven bag, big bag, bulk bag, sack |
| Application: | Chemical,Food,Medical,milk powder, dry powder, chemical powder, washing powder |
| Function: | weighing packging sewing stitching system |
| Condition: | New |
| Function: | weighing, filling, vacuum sealing, conveying |
Quick Details
Specifications
Applications:

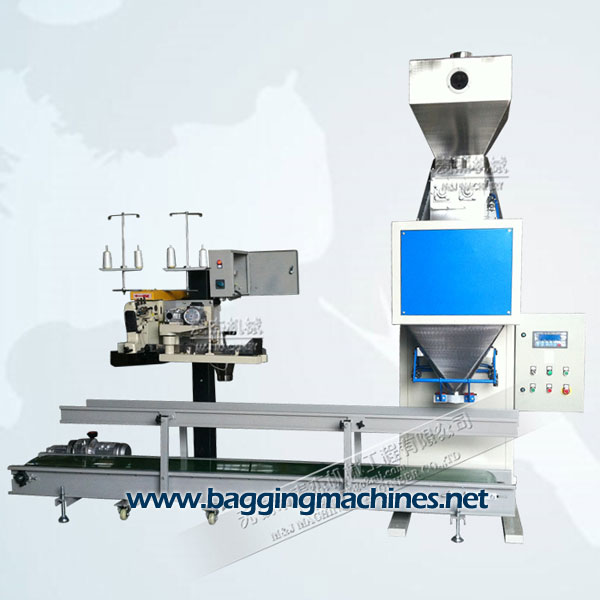

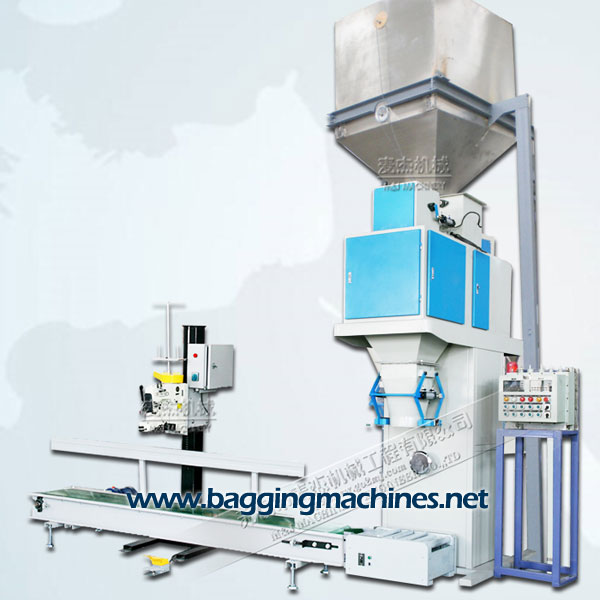

This unit is a semi-automatic packing system applicable rationing
weighing and packing of the powdery material discharged forcefully by
the feed gearing. Such as mortar, fertilizer, feed, medicine, chemical
materials, etc.The bag must be supplied and clamped by manual.
Flowing Process:
Manual Bag placing→Automatic filling→Automatic weighing→Automatic bag conveyer→Automatic bag sewing
Main Structures:
1. Automatic filling system
2. Automatic weighing balance
3. Automatic belt conveyor
4. Automatic sewing machine
5. Electric control cabinet
To see more, please click our website:
To see more, please click our website:
Technical Parameters:
|
Model |
LCS |
LCS-Y |
LCS-Y2 |
|
Weighing Range |
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs |
||
|
Precisions |
±0.2%FS |
||
|
Packing Capacity |
150-200bag/hour |
250-300bag/hour |
480-600bag/hour |
|
Power supply |
220V/380V, 50HZ, 1P/3P ( Customized) |
||
|
Power (KW) |
3.2 |
4 |
6.6 |
|
Dimension (LxWxH)mm |
3000x1050x2800 |
3000x1050x3400 |
4000x2200x4570 |
|
The size can be customized according to your site. |
|||
|
Weight |
700kg |
800kg |
1600kg |
