| Type: | Multi-Function Packaging Machine |
|---|---|
| Brand Name: | m&j mACHINERY |
| Packaging Material: | Wood |
| Packaging Type: | Bags,Stand-up Pouch,plastic sack paper bag pp woven bag, 1kg bag, bulk bag, big bag,, |
| Application: | wheat flour starch cassava flour, cocoa powder, yam flour,, |
| Function: | Filling,Sealing,weighing packging sewing stitching system |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO9001 |
| Dimension(L*W*H): | 3000X1200X2500 |
| Model Number: | LCS-LX |
| Place of Origin: | China (Mainland) |
| Power: | 3.3KW |
| Voltage: | 220v/380V cUSTOMIZED |
| Driven Type: | Electric |
| Automatic Grade: | Semi-Automatic |
| Condition: | New |
| Function: | weighing, filling, vacuum sealing, conveying |
| Packing Range: | 1kg to 5kg, 2kg, 25kg to 50kg, 5kg-50kg,10kg, 10-20kg,25 to 50 kilos |
| speed: | 200-600bag/hour |
Quick Details
Specifications
Applications:

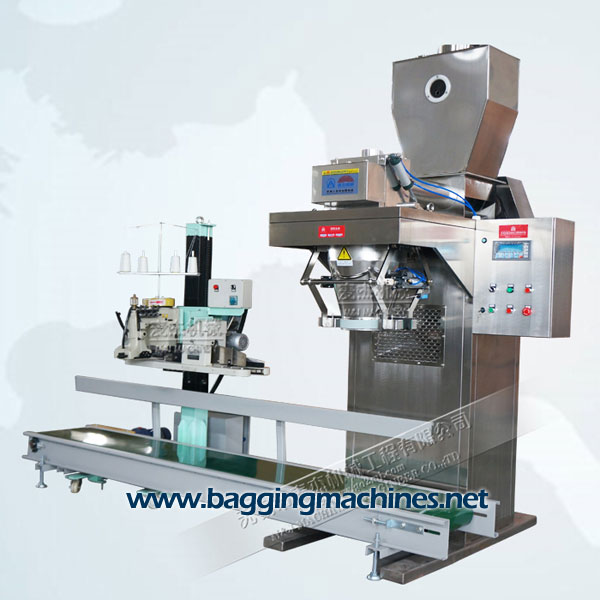

this unit is a semi-automatic packing system applicable rationing
Weighing and packing of the powdery material discharged forcefully by
the feed gearing. Such as mortar, fertilizer, feed, medicine, chemical
Materials, etc.the bag must be supplied and clamped by manual.
Flowing Process:
Manual Bag placingAutomatic fillingAutomatic weighingAutomatic bag conveyerAutomatic bag sewing
Main Structures:
1. Automatic filling system
2. Automatic weighing balance
3. Automatic belt conveyor
4. Automatic sewing machine
5. Electric control cabinet
Technical Parameters:
Model |
LCS |
LCS-Y |
LCS-Y2 |
Weighing Range |
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs | ||
Precisions |
0.2%FS | ||
Packing Capacity |
150-200bag/hour |
250-300bag/hour |
480-600bag/hour |
Power Supply |
220V/380V, 50HZ, 1P/3P ( Customized) | ||
Power (KW) |
3.2 |
4 |
6.6 |
Dimension (LxWxH)mm |
3000x1050x2800 |
3000x1050x3400 |
4000x2200x4570 |
the Size can be customized according to your site. | |||
Weight |
700kg |
800kg |
1600kg |
