| Type: | Filling Machine |
|---|---|
| Brand Name: | m&j mACHINERY |
| Packaging Material: | Wood |
| Packaging Type: | Bags,Stand-up Pouch,kraft bagpp woven bag, big bag, bulk bag, sack, |
| Application: | Chemical,Food,wheat flour starch, cassava flour, cocoa powder, yam flour, |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO9001 |
| Weight: | 5000kg |
| Dimension(L*W*H): | 15000x200x4500cm |
| Model Number: | MZDP |
| Place of Origin: | China (Mainland) |
| Power: | 8KW |
| Voltage: | 220v/380V cUSTOMIZED |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Application: | powder packing machines,powder packaging machine |
| Function: | weighing, filling, vacuum sealing, conveying |
| Packing Range: | 1kg to 5kg, 2kg, 25kg to 50kg, 5kg-50kg,10kg, 10-20kg,25 to 50 kilos |
| speed: | 600-800bag/hour |
Quick Details
Specifications
Applications

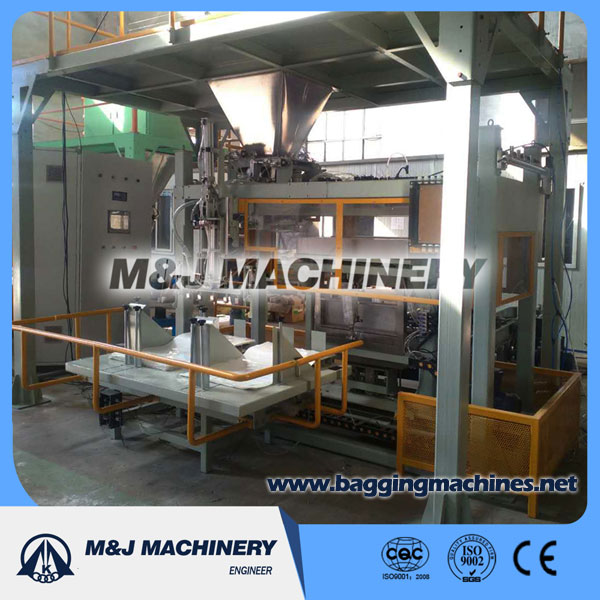

It is Completed Automatic Packing Machine applicable for packing powder in Industries such as chemistry, fertilizer, grain, food, feed, medicine, Construction materials industry, etc.
Main Components
1. Automatic quantity-fixed balance
2. Automatic Bag-supply section
3. Optional section such as air Compressor
4. Automatic Bag-clamped section
5. Automatic belt conveyor
6. Automatic Sewing / sealing machine
7. Automatic bag-backwards section
8. Electrical Instrument control cabinet
Features
L Picking bag, feeding bag, filling material, weighing in, sewing / Sealing bag, bag-backwards and bag transmission are finished completely Automatically.
L Adopting PLC to guarantee the reliability of control
L Adopting high-precision transducer and intelligent instrument to Guarantee the accuracy and speed of weight
L Adopting touch screen with trouble display and help system for easy Operation.
L Adopting imported pneumatic components features compact structure, Reliable performance and convenient maintenance.
L the sewing / sealing machine is branded machine.
Technical Parameter
MODEL |
LCS-MZDP | |
PACKING CAPACITY |
600-1200 bags/hour (depending upon the material) | |
FILL MODE |
1-2 time/1 bag filled (Customized) | |
PACKING MATERIALS |
Granule/Flakes/Powders/Lumps/Pellet | |
BAG TYPE |
Kraft Paper bags | |
PP Woven bags | ||
Plastic bags (thickness 0.2mm) | ||
BAG SIZE |
LONG (mm) |
750-950(Customized) |
WIDTH (mm) |
400-520(Customized) | |
BOTTOM WIDTH (mm) |
0-75(Customized) | |
MATERIAL FILLING DEVICE |
Net weighing. Double type. Dosing system | |
ACCURACY |
0.2% (It changes with physical properties of materials and its capacities) | |
SEALING MODE |
Paper bags: Stitching/Hear seal tape/Crepe tape | |
Woven bags: Folding/Stitch | ||
Plastic bags: Heat | ||
AIR CONSUMPTION |
2,000 NL/min | |
RATED POWER |
8.9 kVA | |
WEIGHT |
3,000 kg (Referance) | |
DIMENSIONS |
(Customized) | |
