| Type: | Other |
|---|---|
| Brand Name: | m&j mACHINERY |
| Packaging Material: | Wood |
| Packaging Type: | Bags,jumbo bag fibc, super sack, ton bag, 1000kg bag, big bag, bulk bag, |
| Application: | Chemical,Food,cement dry mortar, lime powder, talc powder, silica sand, |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO9001 |
| Dimension(L*W*H): | 3000X1200X4500 |
| Weight: | 2500kg |
| Model Number: | LCS-MT |
| Place of Origin: | China (Mainland) |
| Power: | 5kw |
| Voltage: | 220v/380V cUSTOMIZED |
| Driven Type: | Electric |
| Automatic Grade: | Semi-Automatic |
| Application: | gravel, stone dust,coarse aggregate, fly ash, putty powder |
| Packing Range: | 500kg 1000 kg 1500kgs |
| Speed: | 10-20 bag/hour |
Quick Details
Specifications
Applications

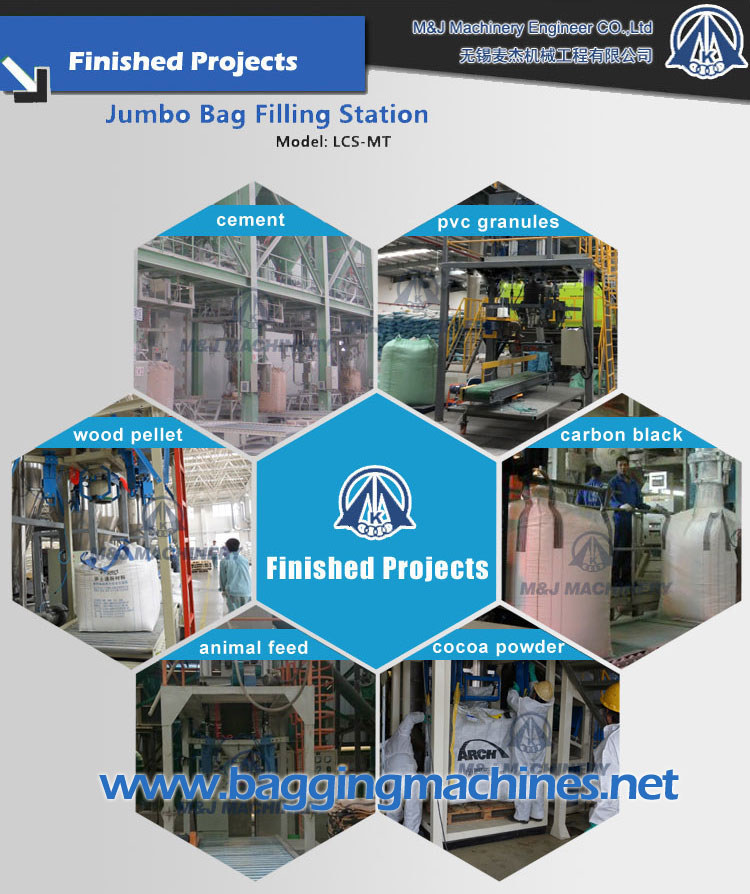

this is jumbo bag filling packing machine LCS-MT model with CE certificated equipment.
this Machine is controlled by computerized instrument and easy to operate & manage. for example, filling bagging 1000kg jumbo bags, you just Need to input it 1000kg as the target net weight and place the bag ready to the machine hanger, then the machine will automatic weighing filling 1000kg per bag, then, unloading the filled bag and the matching Underling rolling conveyor will transport the filled bags outer for Forklift carrying away.
Main Structure
1. Automatic filling and weighing system:
1.1 Feeding/dosingSystem- belt type
1.2 Weighing sensor
1.3 Weighing balance
1.4 Bag hanger andClamping system (Pneumatic), automatic take-off bag loops
1.5 Bag lifting system (Pneumatic)
1.6 Bag inflation system
1.7 Automatic rolling conveyor (1.5meter+2.5meter, Optional)
2. Electric control cabinet
Technical Parameter
Type: LCS-MT
Precision: 0.2%FS
Weighing Scope:800-2000kg
Production capacity:10-15 bag/hour(depending on discharging temperature, air content, etc.)
Power Supply: 380V A.C. 50HZ/ Can be customized
Power: 4 (KW)
Compressed Air: 0.5~0.6(Mpa)
Compressed Air Consume: 0.6 (m3/h)
