HIGH PRECISION POWER PRESS

Standard Equipment:
-JH21 series high precision presses is one of the new generation of plate process and developed by OHA.
The press is for cutting,punching,blanking,bending and light stretching work.
-Rigid construction guarantees exact die mating,six-side long rectangle guides of the slide with high moving precision and high accuracy,extending the service life of the die.
-Highly advanced,rigidly supported gears,operate in oil bath without any noise saves space,reduces,shaft deflection,increases gear life.
-The press adopts the low inertia combined dry pneumatic friction cluth and brake from OMPI,Italy,Smoother press performance easier maintenance,to ensure reliable safety and flexible action,low noise,long service life.
-Driving gear is installed into the frame and gear is immersed in oil reservoir.Customer could choose Electromagnetic governor.
Which is stepless speed regulation within a certain range and enlarge the area of craf.
-Auto grease lubrication system,easy stroke adjustment mechanism increases press versatility tremendously.
-Pneumatic dual balance system,easy stroke adjustment mechanism increases press versatility tremendously.
-Pneumatic dual balance cylinder,which balances the slide block and punch weight to reduce noise and impact.

Technical specifications:

Norminal pressure	kn	250
Nominal pressure stroke	mm	3
Length of the slide stroke	mm	80-120
Max.die height	mm	200
Die height adjustment amount	mm	50
Distance from slider center to the frame	mm	160
Worktable dimension(F.BxL.R)	mm	300x680
Dimension of worktable hole	mm	130x260
Thickness of bolster	mm	70
Dimension of slider bottom surface	mm	270x330
Size of the handle hole(DiameterxDepth)	mm	40x60
Distance between uprights	mm	448
Main motor power	kw	3
Dimension	mm	1150x1050x2050
Weight	kg	2200

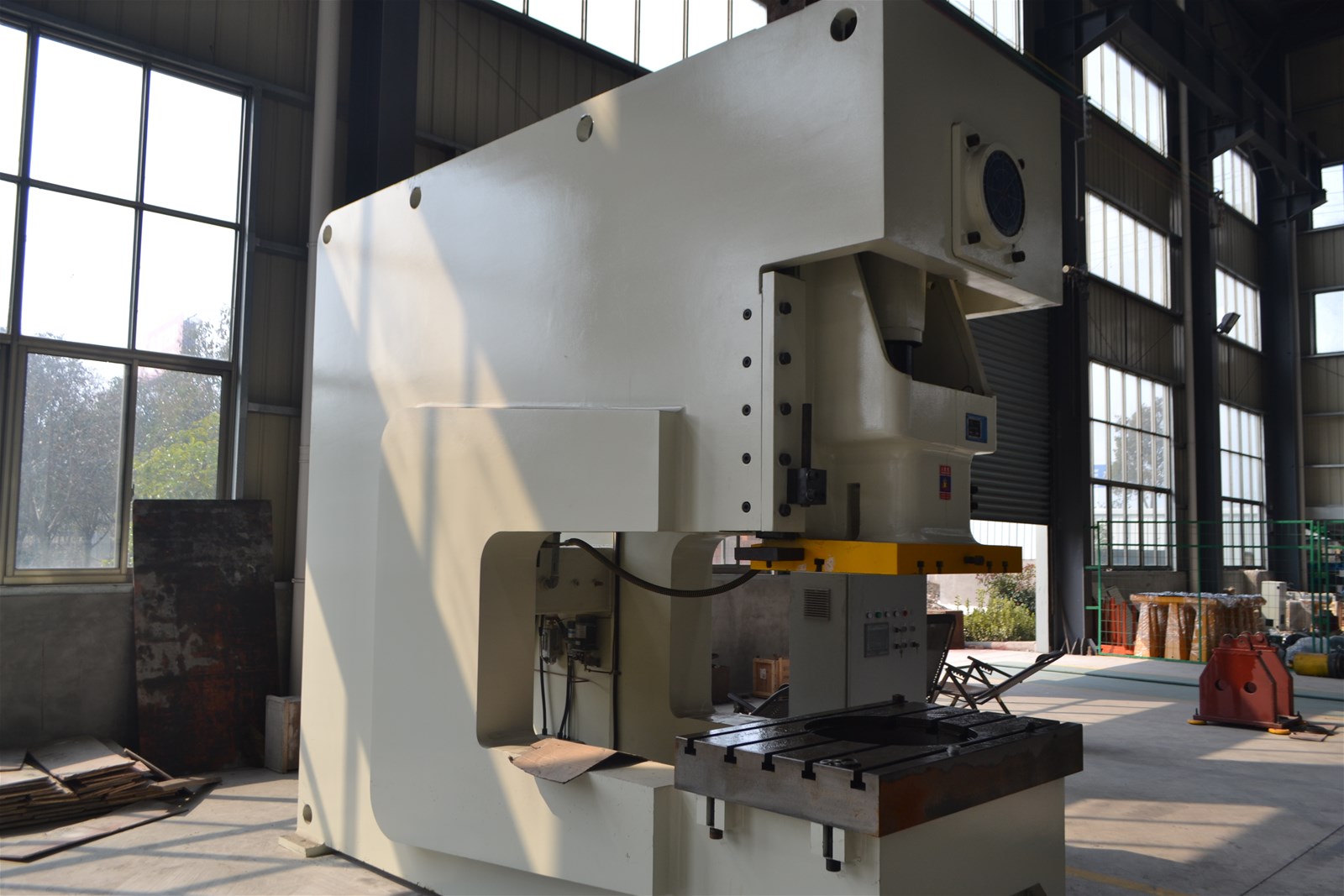

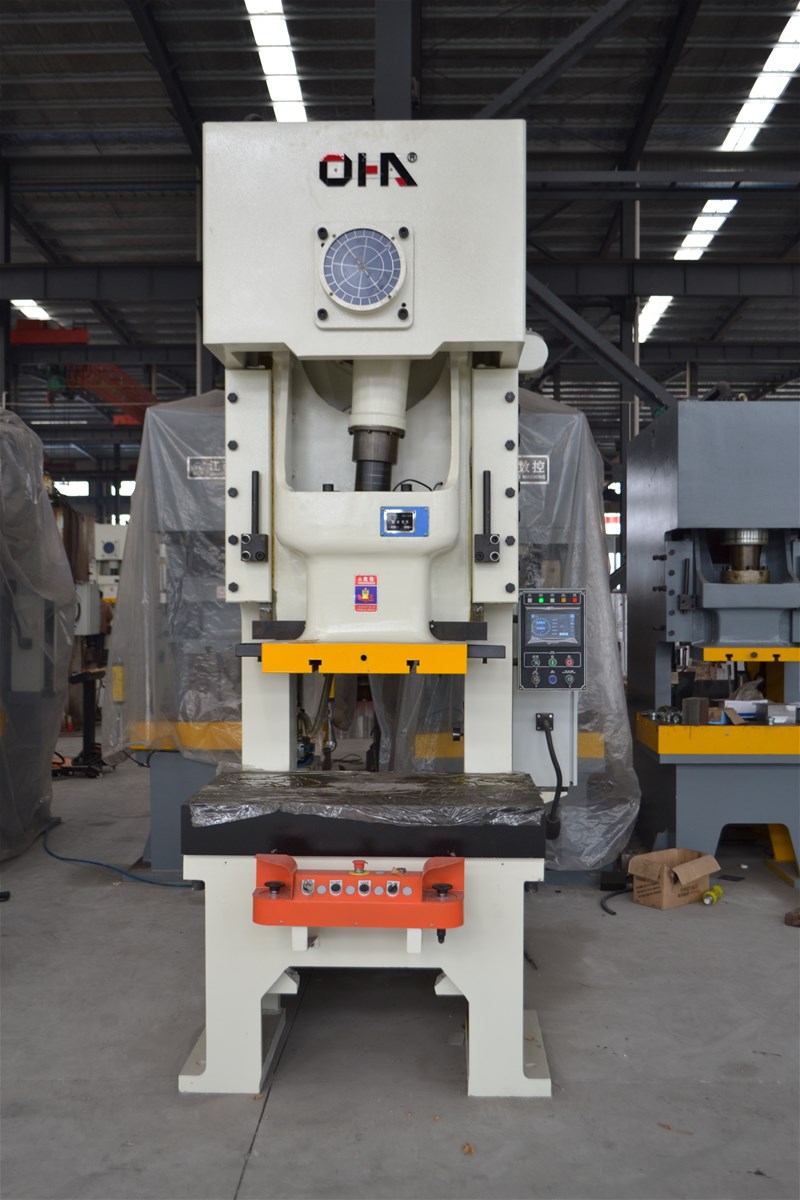

Main picture:

IF THERE IS ANY OTHER PROBLEM,JUST FEEL FREE TO CONTACT US.
WE ARE LOOKING FORWARD TO YOUR CONTACT.
