Product Main

Quick Details

Brand Name: Huamo

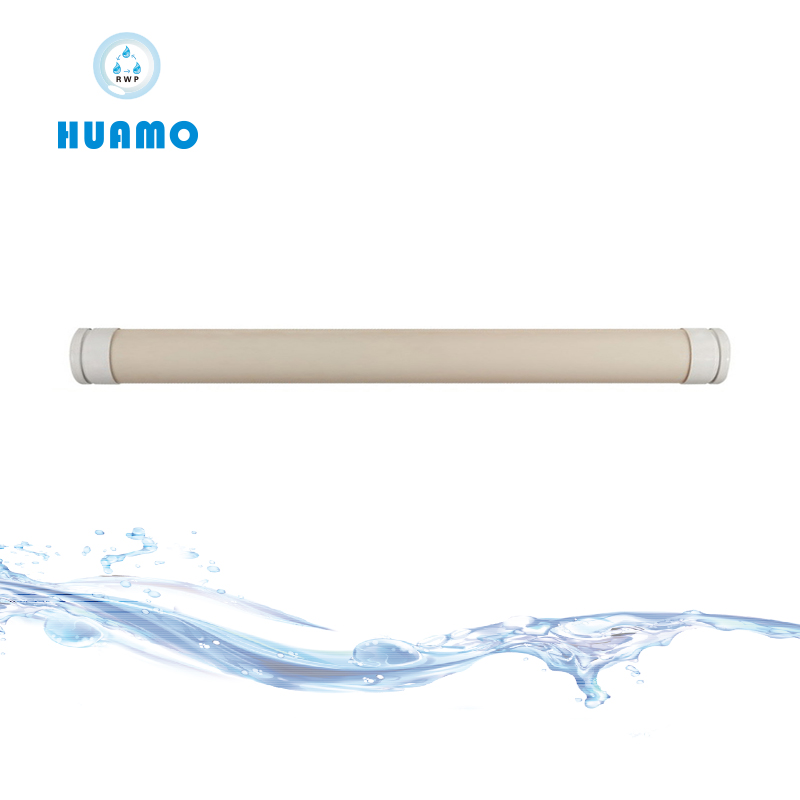

name: Inside-Out Hollow Fiber PAN/PS UF Membrane Modules
Material: PAN/PS
application: Pre-filtration
Type: uf membrane
Model Number: UF-4021/4040/8040
Place of Origin: China (Mainland)
Product name: Hollow Fiber UF Membrane
Hollow fiber material: PAN/PS
Filtration method: Inside-out
Size: 101*533mm,101*1016mm,201*1016mm
Hollow fiber ID/OD: 1.0mm/1.6mm
PH range: PAN:3-9, PS:2-12
Function: Producing Fresh Water
Payment: TT/Western Union
MOQ: 1 PC
Shipping: By sea or DHL/UPS/TNT/UPS

Specifications

Insideout Hollow Fiber PANPS UF Membrane Modules
UF Module UF-4021/4040/8040 Ultrafiltration Components
Model UF-4021 UF-4040 UF-8040
Size  101*533mm  101*1016mm  201*1016mm
Hollow fiber material PAN/PS PAN/PS PAN/PS
Hollow fiber ID/OD 1.0mm/1.6mm 1.0mm/1.6mm 1.0mm/1.6mm
MWCO(Daltons) 10k~100k 10k~100k 10k~100k
Membrane area 1.9m2 3.8m2 1.9m2
Filtration method Inside-out
Initial flux L/H, 0.1mpa, 25 pure water as feed 400 800 5000
Designed water flux 40-120L/m2/h
End seal material Epoxy resins
Housing material UPVC
Max. Feed pressure 0.3mpa
Max. trans-membrane pressure 0.2mpa
Normal trans-membrane pressure 0.02-0.15mpa
Feed turbidity 50ntu
Permeate turbidity 0.1ntu
Max. working temperature 5-45
PH range PAN:3-9    PS:2-12
Microorganism, pathogen 99.99% removal
