Linear Auto Plastic-Card Blister Packing Machine



Introduction:

The machine is the new equipment which is developed by our technical department based on the mature technology from pharmaceutical packing machinery of more than ten years, and absorbing the working principle of similar machine at home and abroad. It has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance.

Machine application

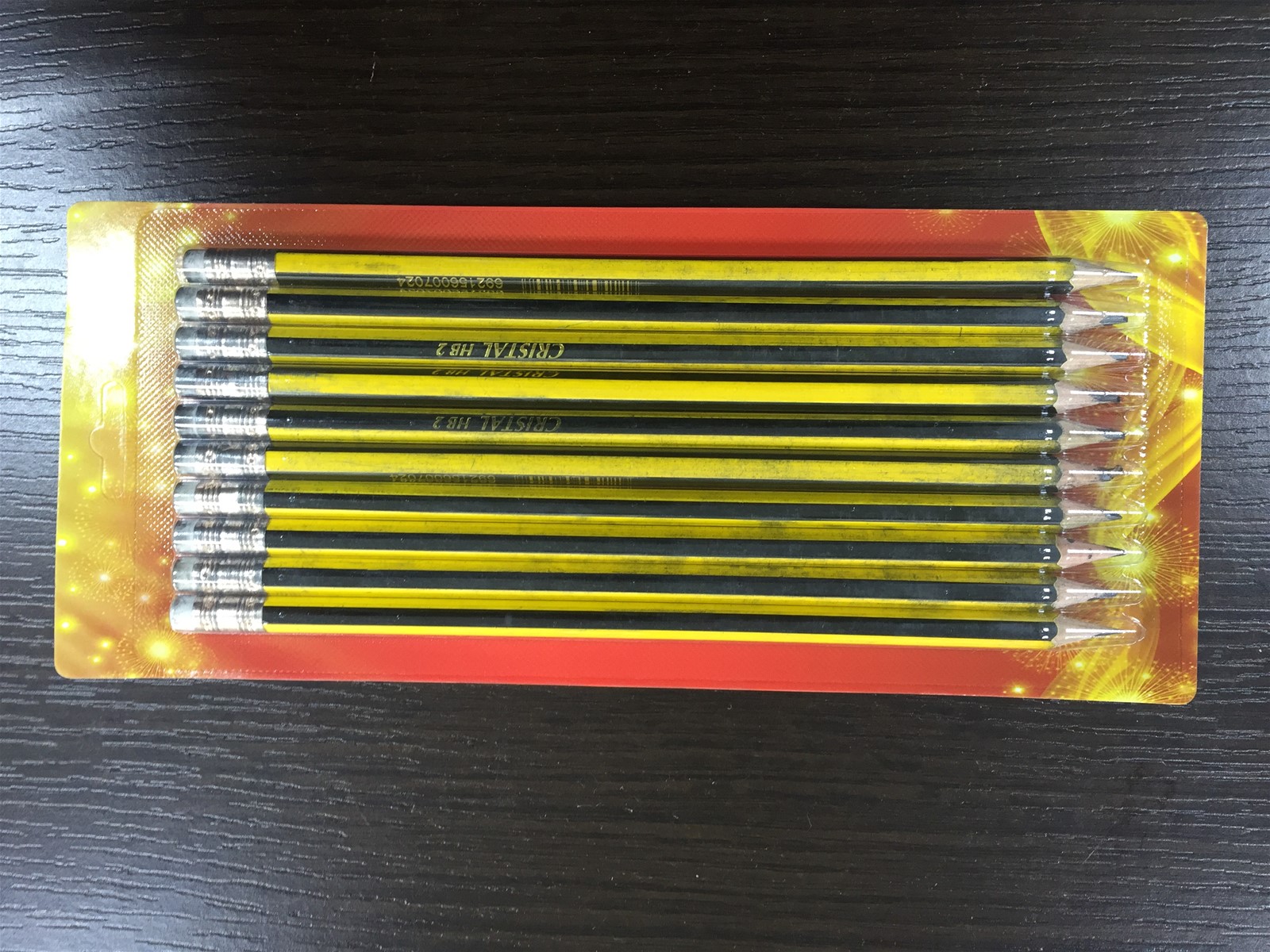

This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys, hard ward, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car, scissor, flashlight, battery, spark plug, lip stick, hook, shaver, pencil etc.

Main features

A. Mechanical transmission, servo motor driving, encoder control, reasonable structure, easy operation.

B. 304 stainless steel frame, beautiful appearance, convenient for cleaning.

C. PLC control system, frequency speed adjust, which will help to reduce the noise and improve the running stability of the machine.

D. Photoelectrical control, auto detection.

E. Separated card feeder, which will reduce the labor force.

F. The whole machine is separately designed, it is convenient to delivery with lift.

G. To design the mould and auto feeding method according to the product shape.

Parameters

Machine model	HM-500PC
Cutting frequency(times/min)	12-25times/min
Maximum travel range	40-200mm
Maximum forming area	480×200mm
Standard forming depth	40mm( can be customized)
Air pressure	0.5-0.8Mpa
Air flow	≥0.5m3/min
Total power	380V  50Hz  11.8KW
Overall dimension	5800×1050×1850mm(L×W×H)
Machine weight	2100kg



After-sale Service

The complete machine is guaranteed for 12 months with whole life free maintenance and technical guide.

1. Within period of warranty.

a) Except for the consumable parts and the damaged parts are caused by artificial factor, we can replace the new component in free of charge only when the machine is operated and used under normal condition, while shipping cost should be paid by buyer.

b) If on-site training and service is needed, the buyer should help the engineer of our company obtain the vias and prepay all the expense related to the service, including but not limited to traffic expense in China, the commission charge related to visa, air ticket, oversea traffic fee, accommodation rend, food expense etc. The training and technical service can be provided for free.

2. Beyond period of warranty.

a) We offer repair service if the machine is out of warranty period. Changing new components need to charge the cost of the component and shipping cost will be paid by buyer.

b) For normal operation skills and other basic problems, we can provide you the related technical support through email or online answering.

c) If whole life of the machine, you can send back the machine or spare parts at any time to our factory, our engineer will refresh and maintenance the parts on your machine as free, but cost is charge of buyers.
