Feature

1. Thorough self-diagnosis for software and hardware at start-up stage.

2. Strong anti-interference properties secure stable outdoor operation powered by electric generator.

3. Quickly and exactly set exposure parameters on friendly interface.

4. Delay by 18 seconds before exposure for operator to evacuate.

5. Gradually increase and decrease voltage to avoid damage to X-ray tube.

6. Duty cycle by 1:1

7.Thorough protection measures against over-kV,over-mA, under-kV, under-mA, over-temperature.

8. this x-ray machine is of portable structure, and convenient for operating outdoor.

9. High voltage coil is made of insulating & thermostable materials

10.Small size, light weight

11.Generator chamber is filled with SF6 gas for isolation
12.Grounding anode
13.Cooling with fan.

Specification

Items		Parameters

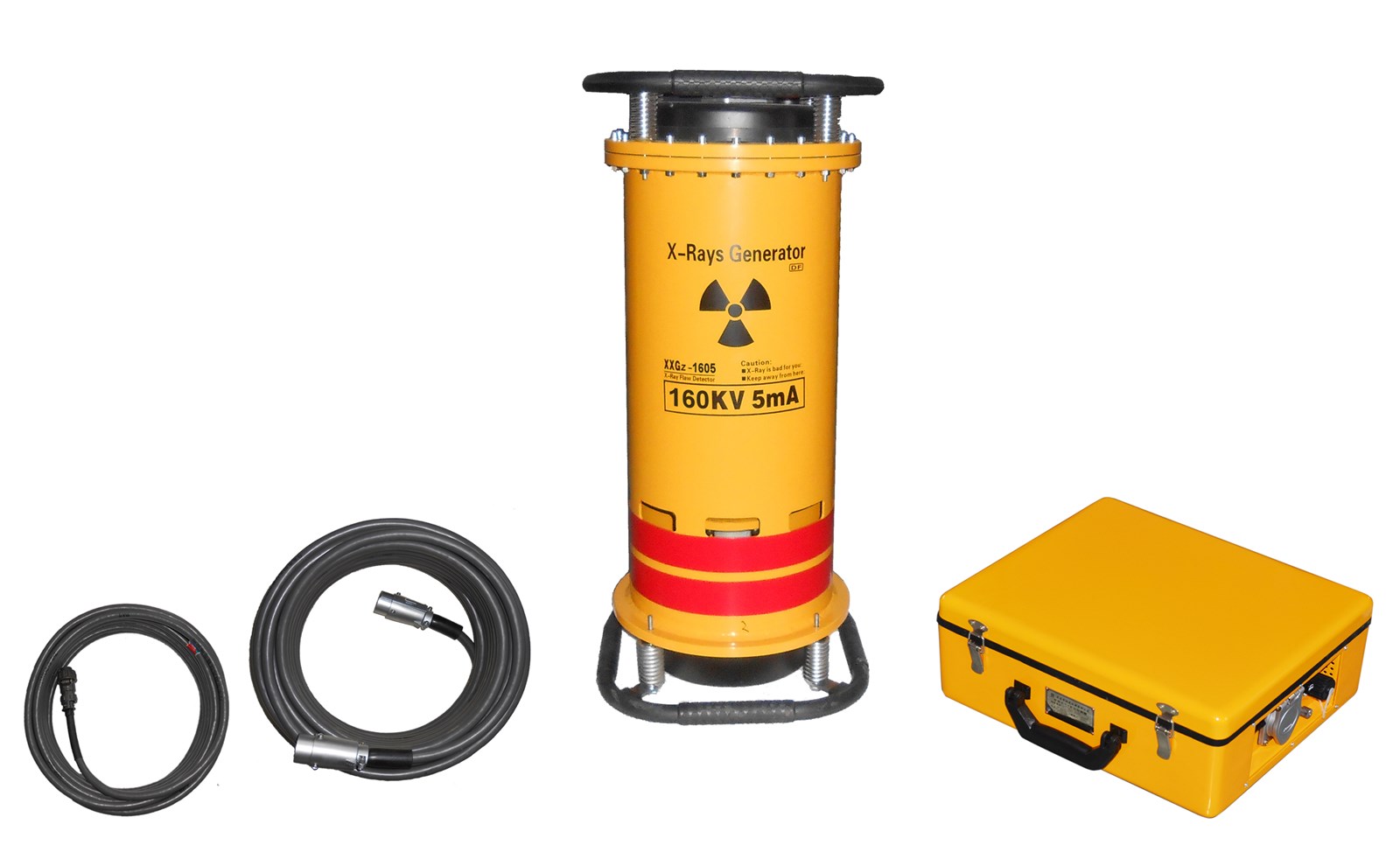

Model		XXGH-1605
Max. Penetration (A3 Steel)		16mm
Focal Length		600mm
Exposure Time		5 minutes
Operation Temperature in Darkroom		20±2°C
Developing Time		5 minutes
Blackening		≥1.5
Sensitivity		≤1.8%
Input	Voltage	AC198-240V/50Hz(60Hz)
	Capacity	1.5kVA
X-ray Tube
Focal Size		1.0×2.5mm
Radiation Angle		360*25 o
Output Voltage		600-160kV(±2%)
Output Current		5mA(±2%)
X-ray Generator
Cooling		Fan
Insulation		SF6
Pressure Gauge		0.34MPa~0.45MPa
Dimension		D230*570mm
Weight		20Kg
Control Unit
Dimension		350*290*150mm
Weight		10Kg
