| Usage: | Universal Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | YG-100B |
| Brand Name: | DDYG |
| Place of Origin: | China (Mainland) |

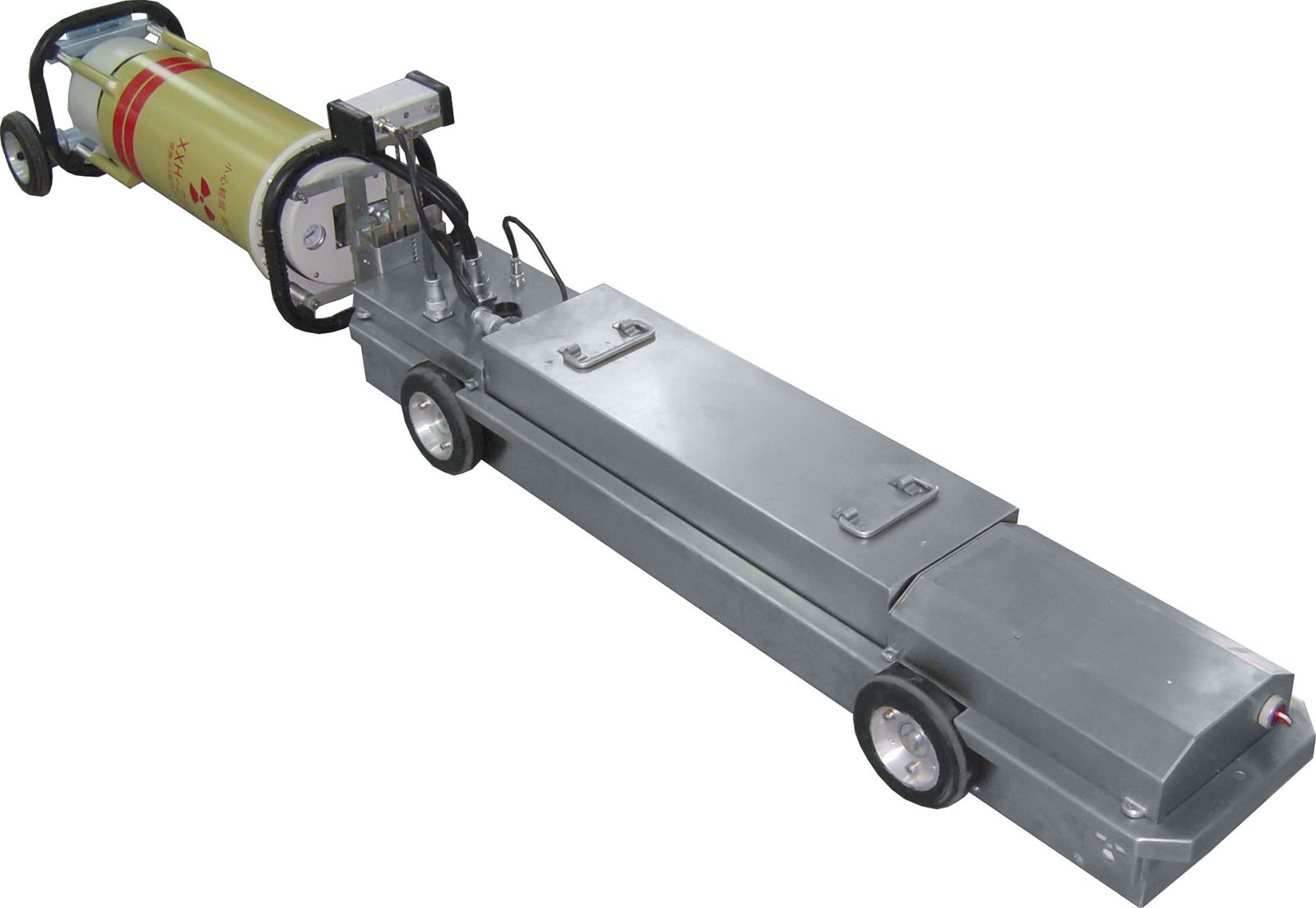

| Working pipe: | Diameter 380-1016mm |
Quick Details
Specifications
FEATURE
1-Automatic machine training.
2-Exposure when proceed forward and positioning, and no exposure during retract.
3-during operation, YG-100 Series can automatically regulate its speed according to pipe gradient (ascending or descending). Also, it can automatically shift drive modes according to the gradient (automatically shift between two-wheel drive and four-wheel drive) to realize full-time or four-wheel drive.
4-during operation and exposure process, fault detection functions are available (for water, obstruction, power supply fault, over-current or over-voltage, over-heating of components, under-current, etc.). If any fault is detected, it will immediately retract to realize real-time protection for the crawler, and it even can be controlled to retract under fault.
5-Remote set of time adjustment. No Item Parameter Remark 1 Operational Pipe DN 350-1000 2 Max. Penetration 30mm A3 Steel 3 Max. Output Voltage 250Kv 0~5 Steps shift 4 Max. Output Current 3mA 5 Focus 1.0×2.4mm Beam Angel 360°×30° 6 Working Temperature －40°~ 70° 7 Relative Humidity ≤90% 8 Capacity of Battery 96V, 22Ah Lead acid battery 9 Motor Power 250W Continuous Rare earth motor 10 Exposure Delay 24s Safety time for distance 11 Exposure Duration 1~300s(Continuously variable) Set by Touching LCD 12 Slope Ability Two-wheel drive:≤27° Optional Four-wheel drive(Manual):≤40° 13 Positioning error ±5mm 14 Proceeding Distance 5Km Round-trip 15 Proceeding Speed 15m/min~18m/min 16 Turning Radius ≥7D Curve in pipeline 17 Weight Body 36.5Kg Total 96.5Kg Excluding Generator and batteries Batteries 60 Kg Power supply for crawler Generator 26Kg Component generating x-rays Commander 2.8Kg Positioning device 18 Outline Dimension Crawler 1.2×0.3×0.19 m Generator Φ240×700 mm XXHz-2505 (Panoramic Cone) 19 Commander Outline:255×113×155 mm Positioning device (12 hours' endurance) Max. Penetration Thickness:34mm Components list No Items Qty No Items Qty 1 Crawler 1 Set 8 Extension Shafts 6-14 Pcs 2 X-ray Generator 1 Set 9 Wheels 3 couples 3 Lead-acid Batteries 2pcs 10 X-ray Generator Stand 1 Set 4 Battery Charger 1PC 11 Cables 3PCs 5 Commander 1 Set 12 Bracket of X-ray Generator 2 Sets 6 Charger of magnetic locator 1PC 13 Tools 1 Bag 7 Signal Receiver 1 Set 14 Screws 1 Bag
SPECIFICATION
