Features:

1. An thorough self-diagnosis for software and hardware at start-up stage can effectively detect component error.

2. Strong anti-interference properties enable X-ray Equipment to be powered by electric generator.

3. Easily set exposure parameters on panel.

4. Delay before exposure to spare time for  evacuation.

5. Gradually increase and decrease voltage to protect x ray tube and high-voltage coil.

6. 1:1 duty cycle

7. Protection against over-kV, over-mA, under-kV, under-mA, over-temperature.

8. this x-ray machine is of portable structure, and convenient for operating outdoor.

9. High voltage coil is made from insulating &temperature-resistant materials

10. Small size, light weight, and easy operation

11. Chamber of X-ray generator is filled with SF6 gas for insulation, ground anode, and cool with fan.

12. Warning light fitted

Specifications

Items		Parameters

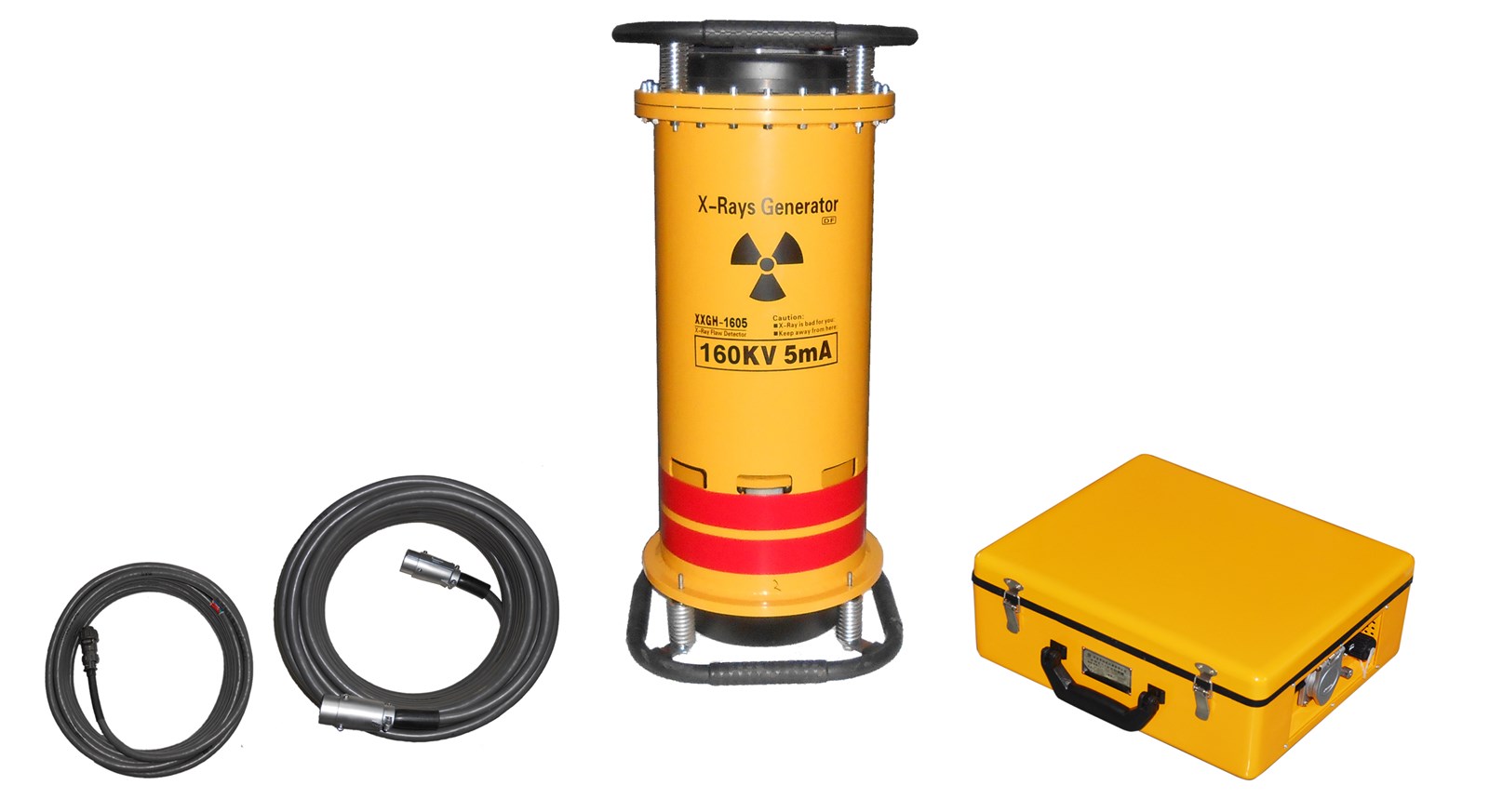

Model		XXGH-1605
Max. Penetration(A3 Steel)		16 mm
Focal Length		600 mm
Exposure Time		5 minutes
Film Type		T3
Operation Temperature in Darkroom		20±2℃
Developing Time		5 minutes
Blackening		≥1.5
Sensitivity		≤1.8%
Input	Voltage	AC198-240V/50Hz (60Hz)
	Capacity	1.5kVA
Ambient Temperature		-30℃~40℃
Ambient Humidity		≤85%
X-ray Tube
Tube material		Ceramic
Emission		Panoramic
Focal Size		1.0×2.5mm
Radiation Angle		360°*25°
Output Voltage		60-160kV (±2%)
Output Current		5mA (±2%)
X-ray Generator
Cooling		Fan
Insulation		SF6
Pressure Gauge		0.34MPa～0.45MPa
Dimension		D230*H570mm
Weight		20Kg
Controller
Dimension		350×290×150mm
Weight		10Kg
