Summary

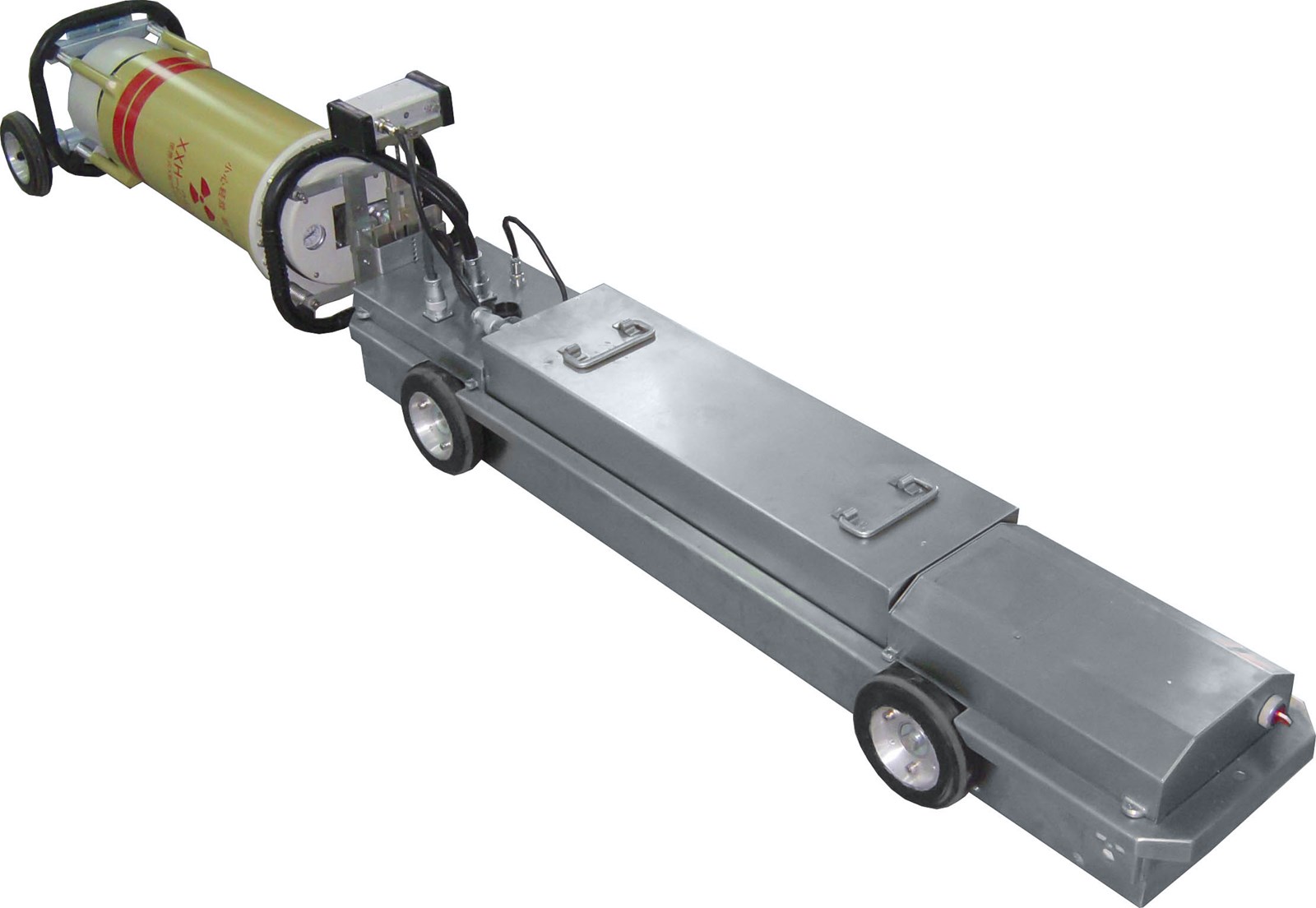

Robotic X-ray testing system for pipeline welding is a kind of quality inspection equipment which is widely used for long-distance transport pipeline (for gas, oil, chemical, steam, etc.) welding examinations with its characters of high efficiency, excellent radiography quality, and high imaging sensitivity, and low failure rate, as well as its security, reliability and convenience features.

Feature

1-Automatic machine training;

2-Exposure when proceed forward and positioning, and no exposure during retract;

3-during operation, PX-100 Series can automatically regulate its speed according to pipe gradient (ascending or descending). Also, it can automatically shift drive modes according to the gradient (automatically shift between two-wheel drive and four-wheel drive) to realize full-time or four-wheel drive.

4-during operation and exposure process, fault detection functions are available (for water, obstruction, power supply fault, over-current or over-voltage, over-heating of components, under-current, etc.). If any fault is detected, it will immediately retract to realize real-time protection for the crawler, and it even can be controlled to retract under fault;

5-Remote set of time adjustment

Components list
No	Items	Qty		No	Items	Qty
1	Crawler	1 Set		8	Extension Shafts	6-14 Pcs
2	X-ray Generator	1 Set		9	Wheels	3 couples
3	Lead-acid Batteries	2pcs		10	X-ray Generator Stand	1 Set
4	Battery Charger	1PC		11	Cables	3PCs
5	Commander	1 Set		12	Bracket of X-ray Generator	2 Sets
6	Charger of magnetic locator	1PC		13	Tools	1 Bag
7	Signal Receiver	1 Set		14	Screws	1 Bag

Model table

Model Item	Operating pipe	Penetration (A3 steel)	Max. Output Voltage	Turning Radius	Battery
PX-15A	Φ700~Φ1400mm	42mm	300kV	≥7D	110V, 22Ah
PX-15B	Φ380~Φ1016mm	30mm	250kV	≥7D	96V, 22Ah
PX-15C	Φ273~Φ710mm	24mm	200kV	≥7D	110V, 10Ah
PX-15D	Φ219—Φ510mm	24mm	200kV	≥7D	96V, 10Ah
PX-15E	Φ159mm	10mm	100kV	≥10D	96V, 7Ah
