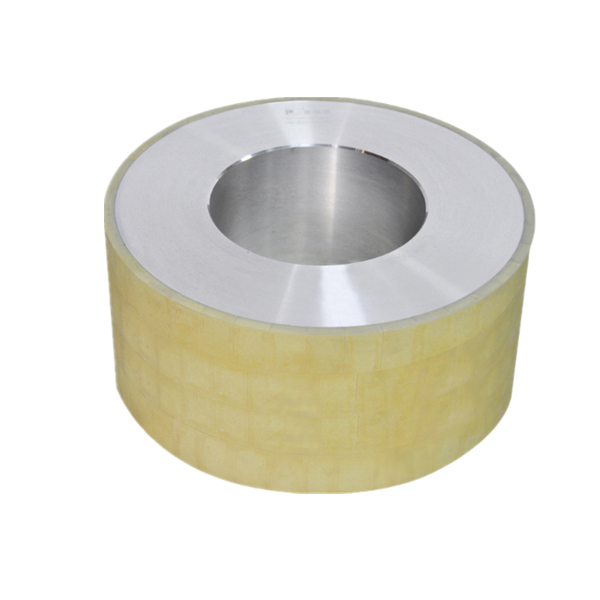

Vitrified bond Diamond Centerless Grinding Wheel for Precision Grinding the Cylinder of Polycrystalline Diamond Compacts (PDC cutter), Compared with resin diamond grinding wheel, our vitrified bond wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved (from ±0.03mm to ±0.01mm).



Type	D(mm)	T(mm)	H(mm)	X(mm)
1AZ,6A1,9A1	200	50	75	10
1A1,6A1,9A1	250	100	75	10
1A1,6A1,9A1	300	100,150	127	10
1A1,6A1,9A1	350	125,150	127	10
1A1,6A1,9A1	400	150,300	203	10
1A1,6A1,9A1	450	150,200,300	228.6	10
1A1,6A1,9A1	500	150,200	305	10
According to customer's requirements
