| Model Number: | SYW-A |
|---|---|
| Brand Name: | GUIHE |
| Place of Origin: | China (Mainland) |
| Probe Length: | 600~4000mm |
| Accuracy: | 0.3mm |
Quick Details
Specifications

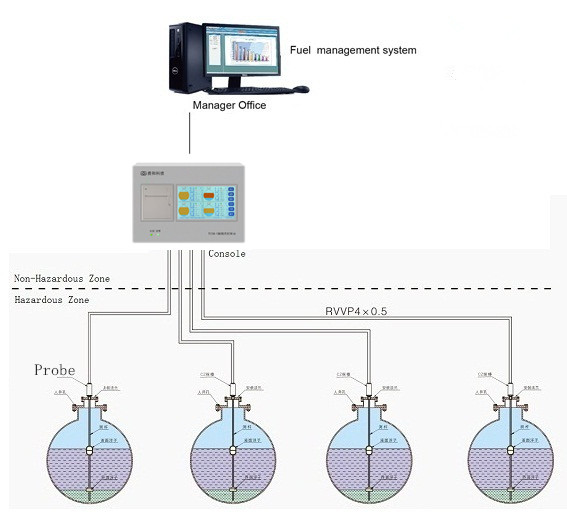

ACcurate inventory, delivery and Sales data for gas station!
Automatic Measurement |
Oil level, water level, temperature, volume |
Scientific Management |
Shifting of duty, Oil reload record, report generation and print |
Security Surveillance |
High or low oil level, water level, temperature monitoring and warning system |
Environmental Monitoring |
Oil leak detecting and warning system |
Data Sharing |
Automatic data transfer with other information system, to expend management function solutions |
Probe Performance
Item |
SYW-A |
Purpose |
to measure product level, water level and temperature |
Titles of medium |
Gasoline, diesel, kerosene, ethanol, water etc. |
State of medium |
Liquid |
Explosion-proof grade |
ExiaIIBT4 (Intrinsically safe) |
Pressure range |
-0.02Mpa~0.6Mpa |
Certificate |
PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments |
Temperature |
-40℃~70℃ |
Product Level Accuracy |
±0.3mm |
Water Level Accuracy |
±0.3mm |
Temperature Accuracy |
±0.2℃ |
Height Resolution |
0.023mm |
Repeatability |
±0.1mm |
Temperature Effect |
Error<0.2mm |
Vibration Effect |
Error<0.5mm |
Lowest Product Inactive Zone |
2.5'' floater-180mm |
Lowest Water Inactive Zone |
2.5'' floater-25mm |
Measured Variable |
Product level, interface level and temperature of 5 sensors and average temperature |
Probe Length |
600~4000mm |
Method of Communication |
RS-485 |
Probe Material |
1Cr18Ni9Ti |
Power Supply |
+24~26VDC |
Protection Class of Probe Canister |
IP67 |
Max Communication Distance |
1200m |
