| General Use: | Commercial Furniture |
|---|---|
| Type: | Laboratory Furniture |
| Model Number: | FH1200(X) |
| Brand Name: | BIOBASE |
| Place of Origin: | China (Mainland) |
| Size: | 1200*800*2200mm |
| Material: | Metal |
| Metal Type: | Stainless Steel |
| Noise: | Less than 60db |
| Gross weight:: | 320kg |
| UV lamp:: | Emission of 253.7 nanometers for |
| Package size:: | 1340*1110*1670mm |
| Air velocity:: | 0.3~0.8m/s |
Quick Details
Specifications
Product Description
Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. by installing proper filter, it can also protect environment.
Model |
FH1000(X) |
FH1200(X) |
FH1500(X) |
FH1800(X) | |||
External Size (W*D*H) |
1000*800*2200mm |
1200*800*2200mm |
1500*800*2200mm |
1800*800*2200mm | |||
Internal Size (W*D*H) |
880*730*745mm |
1080*730*745mm |
1380*730*745mm |
1680*730*745mm | |||
Max Opening |
450mm | ||||||
Blower |
Built-in centrifugal blowers; Speed adjustable with 9 levels | ||||||
Work Surface Height |
850mm | ||||||
Air Velocity |
0.3~0.8m/s | ||||||
Noise |
≤60dB | ||||||
Fluorescent Lamp |
18W*1 |
18W*1 |
36W*1 |
36W*1 | |||
UV Lamp |
Emission of 253.7 nanometers for most efficient decontamination | ||||||
Front Window |
Motorized;5 mm toughened glass, anti-ultraviolet radiation | ||||||
Material |
Exterior Body: Cold-rolled steel with corrosion-proof coating. | ||||||
Work table: Solid chemical-resistant physiochemical board | |||||||
Power Supply |
110/220V±10%, 60/50Hz | ||||||
Consumption |
300W |
300W |
400W |
500W | |||

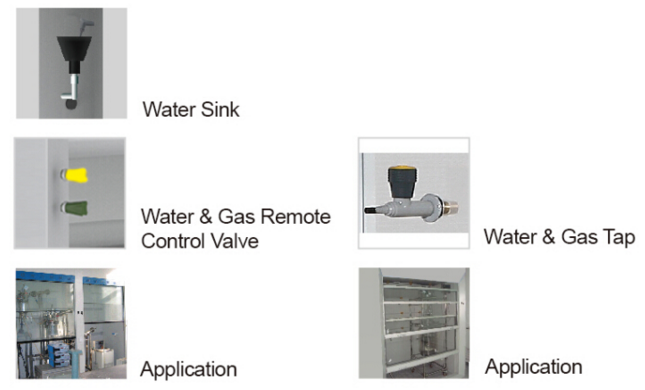

Stand Accessory |
Water tap; Gas tap; Water sink; Base stand | ||||||
Total load of 2 waterproof sockets: 1000W | |||||||
4 meters Exhaust duct | |||||||
Active carbon filter | |||||||
Foot switch | |||||||
Gross Weight |
230kg |
320kg |
370kg |
420kg | |||
Package Size(W*D*H) |
1140*1110*1670 mm |
1340*1110*1670mm |
1640*1110*1670mm |
1940*1110*1670mm | |||
