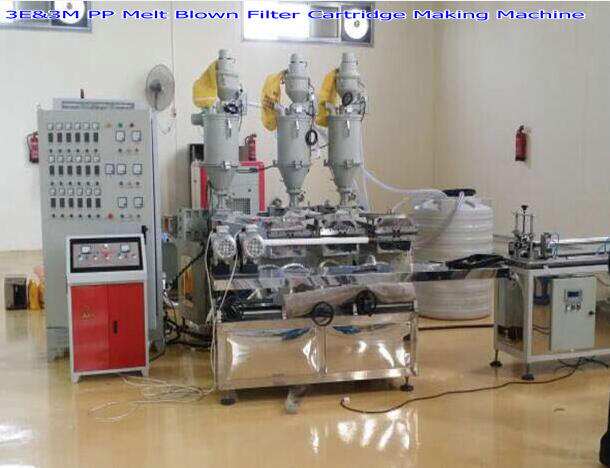

PP melt blown filter cartridge making machine Adopts full automatic control system and variable frequency speed control System, features of high production capacity, large efficiency, low power Consumption, less wastage, good quality, stable performance.

the machine has two or three extruders to melt PP granule into different Density liquid PP with different temperature, then different thickness PP fiber Sprayed onto receiver shaft by molds,finally a multi-layer structure PP Filter cartridge formed, which improves filter precision and increases service Life a lot comparing with single layer cartridge.

Parameters of PP Melt Blown Filter Machine

Rated Power: 55 KW
Actual Power: 28-32 KW
Raw Material: polypropylene ( PP )
Production Capacity: 3500-4200 pcs / 24Hour
Weight of Filter: 70-200g (adjustable)
Filter  Precision:1micron,5micron,10micron,20micron,30micron …100micron
Inner Diameter of Filter: 28mm (default)   (Range of ID:14mm-114mm)
Outer Diameter of Filter: 38mm-120mm (ID=28mm)
Length of Filter: 5'',10'',20'',30,40'',50'' …
Size (L*W*H): 8M*8M*2.6M (100m2-150m2 occupied area)

Weight : 3.9 Tons ( N.W.) 4.2 Tons (G.W.)

Warranty: 2 years



Voltage

AC 380V/50HZ,DC220V/50HZ (customized)

Install

Our Engineer will teach you how to install and operate the machine in our factory.



Certificates

ISO9001:2008   &  CE Certificate



Delivery Time

We Will delivery the goods in 20-25 working days after receipt of your deposit.



Payment Terms

30% T/T prepaid as deposit, the balance against Copy of B/L



Packing Details

Plastic Film wrapped and then wooden case packed
