| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 3050*900*1650 |
| Weight: | 800kg |
| Brand Name: | YAYI machinery |
| Place of Origin: | China (Mainland) |
| Power: | 6kw |
| Voltage: | 380 |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Material: | Metal,Wood |
| Packaging Type: | Bags,Barrel,Belt,Bottles,Cans,Capsule,Cartons,Case,Film,Foil,Pouch,Stand-up Pouch, |
| Application: | Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles, |
| Condition: | New |
Quick Details
Specifications

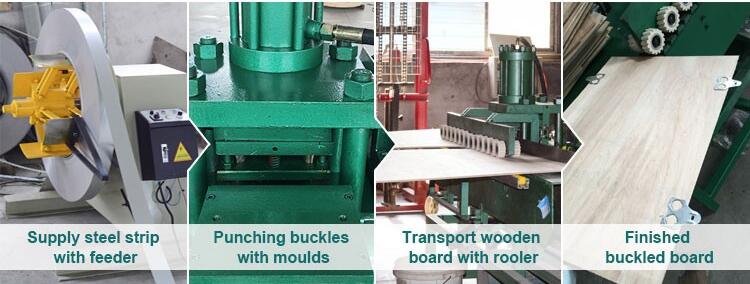

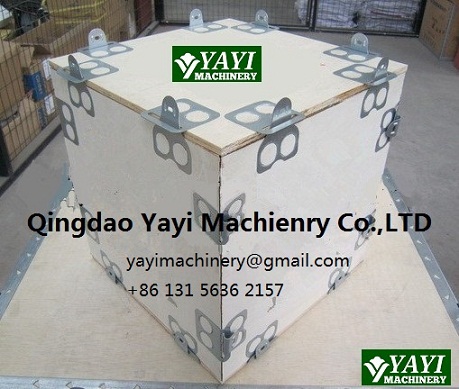

Steel tongue buckle machine for fold-able boxes
Basic Parameter |
Name | Single side Male Buckle machine | Double side Male Buckle machine |
| Power | Max Input power | 6kw | 6kw |
| Pneumatic Feeding | 24 Buckle /min | 24 Buckle /min | |
| Raw material | Steel Strip SGCC | 50*0.7mm | 50*0.7mm |
| Working thickness | Plywood Thickness | 3mm-15mm | 3mm-15mm |
| Control system | PLC | Omron,PLC CPU 226 | |
| Display | Touch screen | ||
| Input voltage | Electrical Parts | Alternating current 380V 50HZ, three phases and Five lines | |
| Dynamical system | Servo-motor | Brand, Taiwan Kenty 1.5 kw | |
| Reducer | High precision servo reducer Speed ratio1:30 | ||
| Hydraulic system | Hydraulic Oil | # 46 antiwear machine oil, tank volume of about 150L | |
| Gross weight | Kg | 800kg | 900kg |
| Gross volume | (L*W*H)/mm | 3050*900*1650 | 3050*3500*1650 |
