| Type: | Bent Tiles |
|---|---|
| Material: | Color Steel Plate |
| Model Number: | YX18 |
| Brand Name: | XHH |
| Place of Origin: | China (Mainland) |
| Tile Type: | Colored Glaze Steel |
| Use: | roof,wall |
| Dimension(L*W*H): | 8000*1500*1600mm |
| Weight: | 6500KGS |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Control system: | PLC(imported Brand) |
| Forming Steps: | 12 steps |
| Material thickness: | 0.3-0.6mm |
| Product name: | Glazed roof tile |
| Power(W): | 5.5KW |
Quick Details
Specifications
Roofing glazed forming machine for building construction
1. Specifications of roofing tile forming machine
1).Main Techincal Data:
| Model Number | |
| Size |
8000*1500*1600mm |
| Weight | 6500KGS |
| Motor Power | 5.5KW |
| Hydraulic Power | 3.7KW |
| Voltage | 380V/50HZ/3PH |
| Forming Steps | 12steps |
| Processing Speed | 8-12m/min |
| Thickness | 0.3mm~0.6mm |
| Feeding Material Width | 1000mm; |
| Effective Width | 840mm |
| Height of Roofing | 38mm |
More type for you to choose
2). Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System with Touching Screen (Brand: Schneider for PLC, touching
screen, cencorder and frequency changer)
2. Pictures of rOofing tile forming machine
3. Certifications of Product

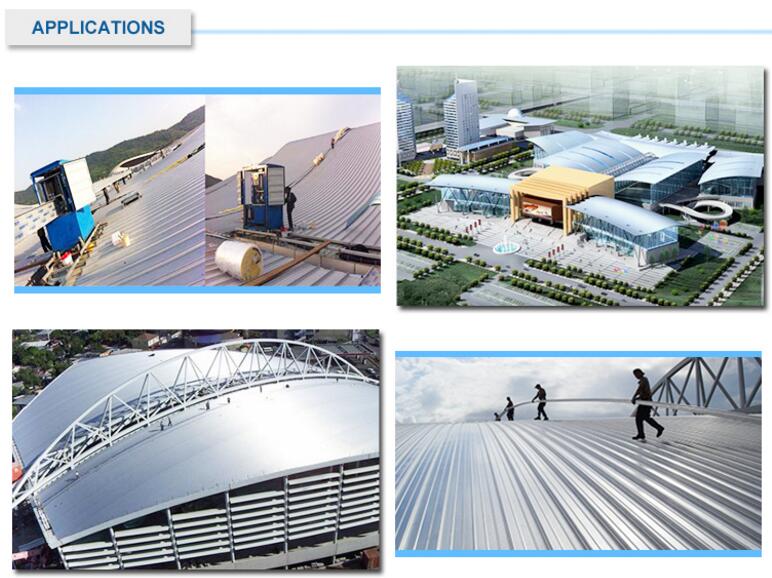

4. Applications of Product
5. Production Line of Product
