| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 Year |
| Certification: | CE , ISO 9001 ,ISO 14001 ,OHSAS 18001 |
| Brand Name: | WINNER |
| Condition: | New |
| Weight: | Customers' Requirement |
| Dimension(L*W*H): | Vary according to customized |
| Power(W): | 7.5-30kw |
| Model Number: | WZMBR |
| Place of Origin: | China (Mainland) |
| Capacity(t/h): | 2-210T/H |
| Power Type: | Electric |
| Application: | metallurgy, chemical industry, coal, building materials and electric p |
| Granularity: | 40-150mm |
| Bulk density: | 0.5-2.5t/m3 |
| Keyword1: | Heavy disc feeder |
| Water content: | Usually<8% , Rainy season<12% |
| Title: | Heavy disc feeder machine with high quality |
| Keyword: | feeder machine |
| Rotational speed of disk: | 1.2-8r/min |
| Keyword2: | feeder machine with high quality |
Quick Details
Specifications

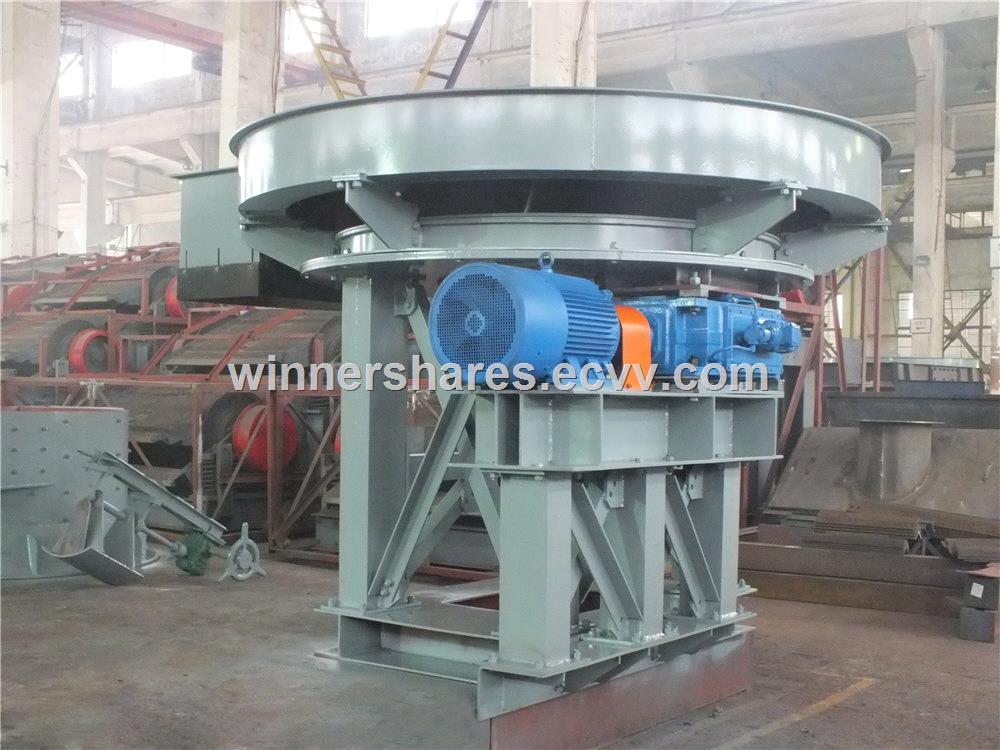

Heavy disc feederHeavy disc feeder Machine with high quality
WZMBR, MBR heavy disc feeder is a feeding device of Volume measurement, WZMBR, MBR heavy disc feeder is seat mounted, the Transmission structure is sealed and can work in environment with much dust. It Has large capacity and usually installed directly in the lower part of storage Bin to feeding other devices.
Application:
Widely used in metallurgy, chemical industry, coal, Building materials and electric power and other industries.
Advantages:
1.Use special heavy disc, high carrying capacity, more Than 10 years service life.
2.Equipped with a frequency conversion motor, stepless Adjust feeding amount.
3.Wet type disc feeder can be applied to materials with Corrosive occasions.
4.the equipment with compact structure and small occupied Space.
5.the transmission mechanism is reliable, maintenance is Simple, and the maintenance period is long.
6.Transmission efficiency is as high as 90%.
7.Provided with a wear-resistant lining board, the Service life is prolonged, and less maintenance.
8, connected to the silo outlet is large in size, easy to Install and nesting materials.
9.Use advanced frequency conversion motor for power, easy To adjust the amount of feeding steplessly.
Technical parameter table:
Model |
Granularity |
Bulk density |
Water content |
Diameter of disk |
Production capacity |
Rotational speed of disk |
Variable frequency motor power |
mm |
(t/m3) |
(%) |
mm |
m3/h |
r/min |
kw | |
WZMBR800 |
40 |
0.5-2.5 |
Usually8% Rainy season12% |
800 |
1.8-9 |
1.6-8 |
7.5 |
WZMBR1000 |
50 |
1000 |
3.4-17 |
7.5 | |||
WZMBR1200 |
80 |
1200 |
7-34 |
1.2-6 |
11 | ||
WZMBR1600 |
90 |
1600 |
14-70 |
15 | |||
WZMBR2000 |
125 |
2000 |
21-105 |
22 | |||
WZMBR2500 |
150 |
2500 |
40-210 |
30 |
