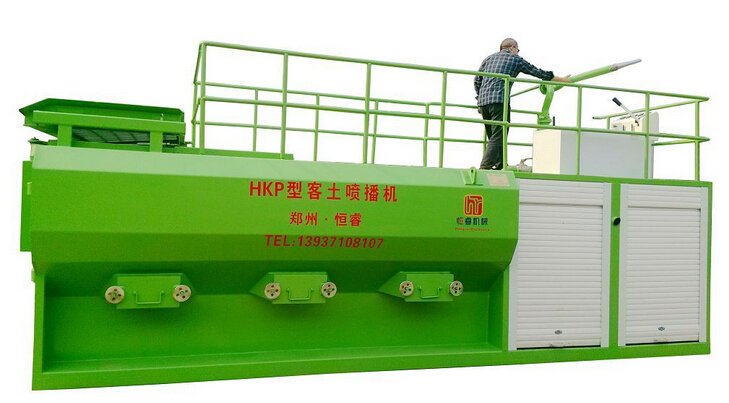

Hengrui  Hydraulic grass seeder spraying Machine

Product  Description

 2. Hydraulic spraying machine have Beautiful appearance, compact structure, Affordable for the majority of users.

 3. Hydraulic Spraying  machine with good integral mobility and Complete supporting accessories. Be powered with electric-start diesel engine, Be easy and convenient to operate.

4. Safe and convenient Operation. the machine is equipped with full-featured operation palette, Skip-proof operation platform which has removable, 80cm-high, closed fence to Guarantee the safety for console operator, spraying gun operator, as well as Other staff members.

 5. Two mixing models, Blades mixing and circular spray, are powerful enough to ensure the spraying Mixture in the planting process is in fully suspended and fully mixed state, Evenly emitting the mixture of raw materials at one time.

  6.Strong power Spraying seeding machine with pumps Has wide usage, Not only can be applied in spraying planting for rice, grass, tress, flowers, Seeds and other crops, but also in irrigation, fertilize, pesticide spraying and other daily care, soil improvement work.

7.Strong power, extended distance can be reached  60m, and equipped with two types of spraying Guns: vertical and horizontal, which extend maximum  operation scope from 200m to 300m; fan-shaped Spray nozzle or mist spraying is more suitable for close-distance planting to Meet various requirements.



Specifications

	HYP-1	HYP-3	HYP-5	HYP-8
WORK VOLUME(Gal)	250	650	1200	1900
TANK CAPACITY(?)	1	3	5	8
OUTLET PRESSURE	5KG	5KG	6KG	6KG
POWER(KW)	20	20	36.2	36.2
MIXING STYLE	BLADES and CIRCULAR
MIXING DIRECTION	BIDIRECTIONAL ROTATION
ROTATION	MECHANICAL CLUTCH
POWER FLOW(?)	40
MAX AGGREGATE DIAMETER	5mm
JET NOZZLE SIZE(MM)	CIRCULAR:20MM     FAN-SHAPED:20MM
SPRAYING DISTANCE(M)	40	40	60	60
SPRAYING AREA(㎡)	600	600	1000	1400
NET WEIGHT(kg)	2100	2100	2300	2800
SIZE(m)	3.0*1.8*2.1	3.0*1.8*2.1	4.2*2.0*2.4	5.2*2.0*2.2



Feature

1,         Attractive appearance, compact Structure.

2,         with good integral Mobility  and  complete supporting  accessories.

3,         Equipped with electric-start Diesel engine, easy to operate.

4,         Good working performance,high Efficiency.

5,          Various types for your choice

Usage:

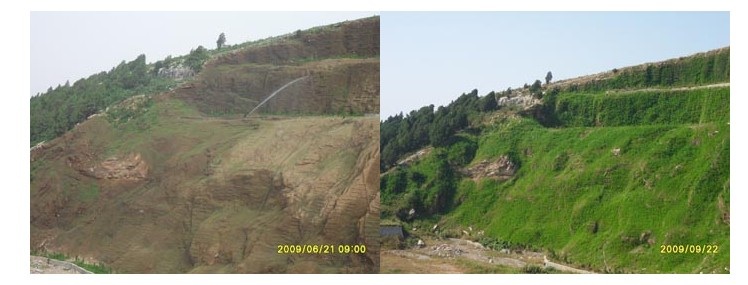

for stable soil slope, high fill sub-grade  slope, artificial soil slope, lawn, rice Field, garden, golf courses, park, school, soil improvement and the place of Erosion control.





Reference:

1, how to choose Spray material?

Spraying material mixture is composed of grass seeds, grass fiber, Peat, water retention agent, adhesives, fertilizers, local soil and water. Grass seeds are selected according to local climatic conditions, grass fibers Contain straw and bellflower by crushing, water retention agent commonly Contain synthetic polymers (acrylic acid / propylene acrylamide polymer). Adhesive usually contains cellulose or glue solution, fertilizer generally uses NPK. Mix the mixture should refer to the design specifications or determined through field test.



2, Spray material's ratio

1) Common clay (40% to 50%), choose clay with a strong bond Adhesion, and a large amount of sand, good permeability after mixed with other Improved materials. You'd better make use of local loam or mellow as local soil Material.

2) Organic nutrient soil (25%-35%), mainly containing organic Matter such as peat and loam absorption that absorb long-term organic Nutrients. Peat organic component content is larger than 80%; N, P, K content: Not less than 5%; PH value: 4.5 to 6.0.

3) Soil improvement material (15% to 25%), mainly wood, plant Fiber, poultry manure, extruded material and other supporting materials. The Purpose is to increase the ability to keep the water and permeability of soil Fertility, increase the buffering capacity of the soil, and microbial activity and nutrient supply, and thus make root growth, reproduction and interludes Easy.

4) Multi-content fertilizer (0.6% to 0.8%), mainly ordinary Fertilizer and Fertilizer with long-term manure, and not easy to loss. General Fertility effect can last up to 2 to 3 years

5) Water retention agent (0.25%): Efficient soil moisture, water Decomposition that particle expanded body absorb and release enables soil keep Water, and make it available for growing plants to absorb repeatedly.



3, Example

for Spraying Machine with 8m³ Tank Capacity, spraying ingredients are: first add 3m³ water( basically up to the position of stir axis line), and then add 5m³ local soil materials, Wood fiber and so on, water retention agent and adhesives according to ratio of 3: 1.
