| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | TECHWELL |
| Weight: | 8t |
| color: | Gray |
| Place of Origin: | China (Mainland) |
| Material: | G.I. Steel, Carbon Steel |
| Feeding Rollers: | 4 Rollers |
| Yield Strength: | 250-350Mpa |
| Punching Type: | Hydraulic Punching |
Quick Details
Specifications
GI. Carbon Steel Top Hat Channel Roll Forming Machine with 1.5 Inch Chain of Transmission
Main Specifications

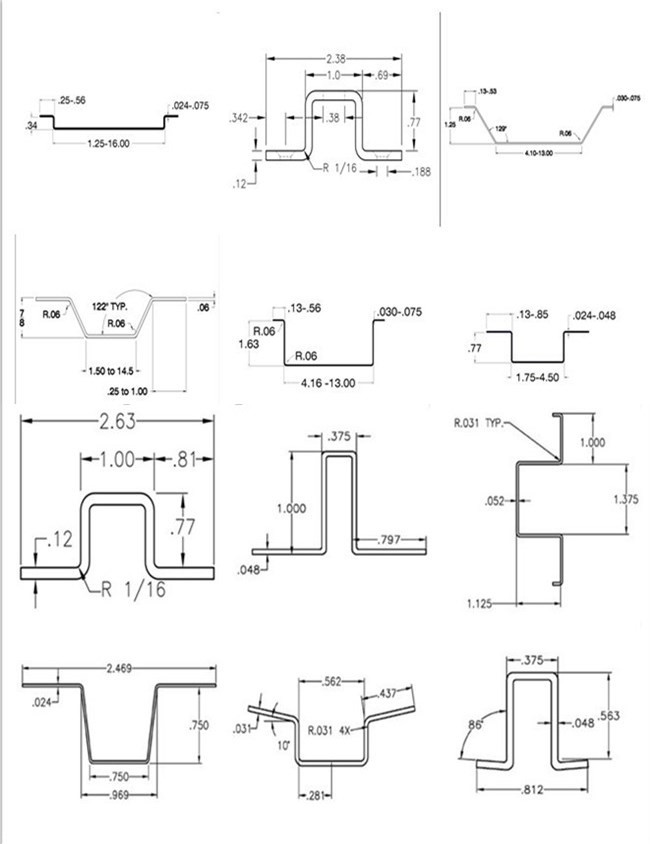

Reference Profile Drawing
Main Specifications
| Coil Material | Thickness | 1.5-3.0mm |
| Coil width | Custom-made | |
| Yield Strength | 250-350Mpa | |
| Material | GI. Carbon Steel | |
| Decoiler / Uncoiler | Coil Width | Max. 600mm |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Pinch Feeding & Leveling | Feeding roller | 4 Rollers |
| Leveling roller | 7 Rollers ( upper 3 rollers, bottom 4 rollers ) | |
| Punching | Punching type | Hydraulic Punching |
| Punching die | Cr12Mov, quenched, HRC58-62 | |
| Roll Forming Machine | Forming stations | 15 Stations ( Depend on Profiles ) |
| Roller material | GCr15 steel, HRC58-62 | |
| Diameter of shaft | 85mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 15KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting blade | Cr12Mov, quenched | |
| Cutting Tolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand or Custom-made |
| Inverter | YASKAWA Brand or Custom-made | |
| Touch screen | MCGS Brand or Custom-made | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 7.5KW | |
| Runout Table | Table type | Simple nonpower type |
| Function | to support the finished panels |
