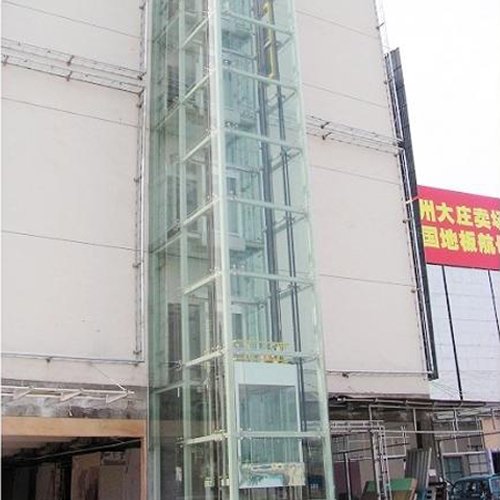

these steel or aluminum lift shafts can be used in a wide range of Clours and finishes. so,whatever surroundings is, the lift structure Can be built to suit it. these metal lift structures can be quickly  installed and are suitable for indoor or exterior.



the load rating up to 480 kg and is suitable both for interior and Exterior environments. the shaft structure is constructed of extruded Aluminum custom-cut vertical uprights with extruded aluminum adjustable Horizontal cross beams.



the structure is equipped to allow the insertion of various glazing Options, aluminum panels, stainless steel sheet panels or honeycomb Sandwich panels. A reversible glazing bead allows the glazing or panels to be installed either flush with the interior wall or exterior wall.



Code Loads(*) Vertical Upright Structural Cross Beams Architectural Cross Beams Adjustable Cross Beams



Slim 320Kg 40 x 80 40 x 114 40 x 114



Std 320Kg 70 x 70 40 x 114 40 x 114



Big 480Kg 100 x 100 40 x 114 40 x 114



(*) Loads are only as an example because these values are subject to Exposure, seismic activity, lift type and availability of fixing to Building



Our lift structures comply with all Building Regulations and hold all appropriate accreditations. Welcome to contact us.
