| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | Hebei Diaozhuo Wire Mesh Equipment Co.,Ltd |
| voltage: | 220 |
| weight: | 100 |
| Condition: | Wire Mesh Equipment |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Details

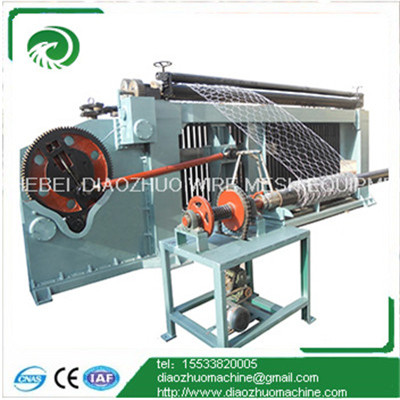

Gabion Mesh Machine is also called heavy-duty hexagonal wire netting machine. the main technical parameter: the products made by our heavy hexagonal mesh machines are widely used as the wrapping meshes of the tunnels of oil, buildings, farming, chemical industry, heating and others. It also can be used as fences and protection of houses and public green areas. Besides, the hexagonal
Mesh can be used to make stone cage net case to protect and support coast, mountain side, road, bridge, reservoir and other
Infrastructure
Specification
| Specification(mm) | Max Net Breadth(mm) | Max Thread Diameter(mm) | Twisting Model | Main Shaft Rate Speed | Motor Power(KW) | Theoretical Production Speed M/h 165 165 165 |
|||
| Dimension (LXWXH)mm |
Weight(T) | ||||||||
| 60X80 | 2300 | 3.0 | 3 | 25 | 11 | 5200X1400X2400 | 13 | ||
| 3300 | 3.0 | 3 | 25 | 15 | 6200X1400X2400 | 14 | |||
| 4300 | 3.0 | 3 | 25 | 22 | 7200X1400X2400 | 15 | |||
| 80X100 | 2300 | 3.0 | 3 | 25 | 11 | 25 | 195 | 5200X1400X2400 | 13 |
| 3300 | 3.0 | 3 | 25 | 15 | 25 | 195 | 6200X1400X2400 | 14 | |
| 4300 | 3.0 | 3 | 25 | 22 | 25 | 195 | 7200X1400X2400 | 15 | |
| 100X120 | 2300 | 3.2 | 3 | 25 | 11 | 25 | 225 | 5200X1400X2400 | 13 |
| 3300 | 3.2 | 3 | 25 | 15 | 25 | 255 | 6200X1400X2400 | 14 | |
| 4300 | 3.2 | 3 | 25 | 22 | 25 | 225 | 7200X1400X2400 | 15 | |
