Quick Details

After-sales Service Provided: Overseas third-party support available
Condition: New
Brand Name: JIUBO
Weight: 0
color: red
Model Number: YHD32-630T
Place of Origin: China (Mainland)
Rated force: 6300 KN
Max. Pressure: 25 Mpa
Max ram stroke: 900 mm
Daylight: 1400mm
Motor power: 45kw

Specifications


Quick Information
  • Place of Origin:China
Description

Machine type

Hydraulic press for composite material forming, YHD32-630T
with electric heating temperature control system


Main technical specifications


NO Parameter Unit YHD32-630T
1 Rated force KN 6300
2 Max. Pressure Mpa 25
3 Max RAM stroke mm 900
4 Daylight mm 1400
5 Ejector force KN 1000
6 Ejector stroke mm 350
7 Preload KN 2500
8 Mold opening force KN 1000
9
RAM speed
 		 Approaching mm/s 250
Press mm/s 8-15
Mold opening mm/s 2-8
Return mm/s 100-150
10 Table size L-R mm 2500
F-B mm 2500
11 Motor power Kw 45


Working surrounding

  • Power-supply fluctuation:380 V (15%), 50Hz, 3P or customized
  • Working temperature:0-40
  • Working humidity:55%-85%, without dew
  • Altitude:<1000 meters
  • Working Surrounding:without harmful gas, without metal fragment, without metal dust, without strong electromagnetic interference

Design & Inspection standard

  GB/T 9166-2009<< Press Machine,precision>>
  JB3831-1999<< Press Machine, Technique>>
  JB3915-85<>
  JB/T8609-1997 <>
  JB/T 3623-1984 <>

Basic structure

the press can be divided in three main components:

   1.the electrical control system
   2.the press
   3.the hydraulic unit




Price
  • Price Condition:FOB
  • Price:USD300000 / set
  • Delivery Port:Tianjin
Packaging & Delivery
  • Packing:Pallet
  • Delivery Lead Time:10-30 days
  • Minimum Order:1set
  • Supply Ability:1 set per month
Product Image

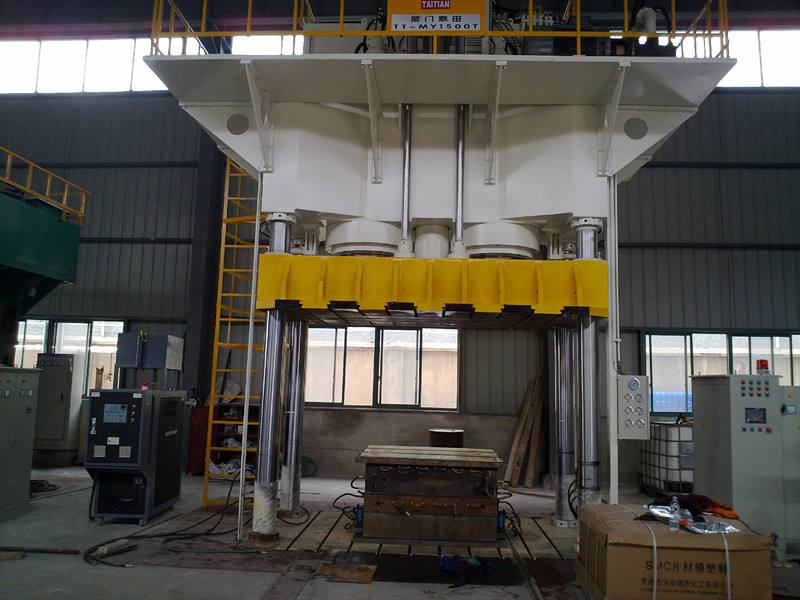

Hydraulic Press for Composite Material Forming
