| Insulation Material: | PVC |
|---|---|
| Conductor Material: | Copper |
| Application: | switch and distribution boards |
| Type: | Insulated |
| Brand Name: | Qinshan |
| Conductor Type: | Stranded |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

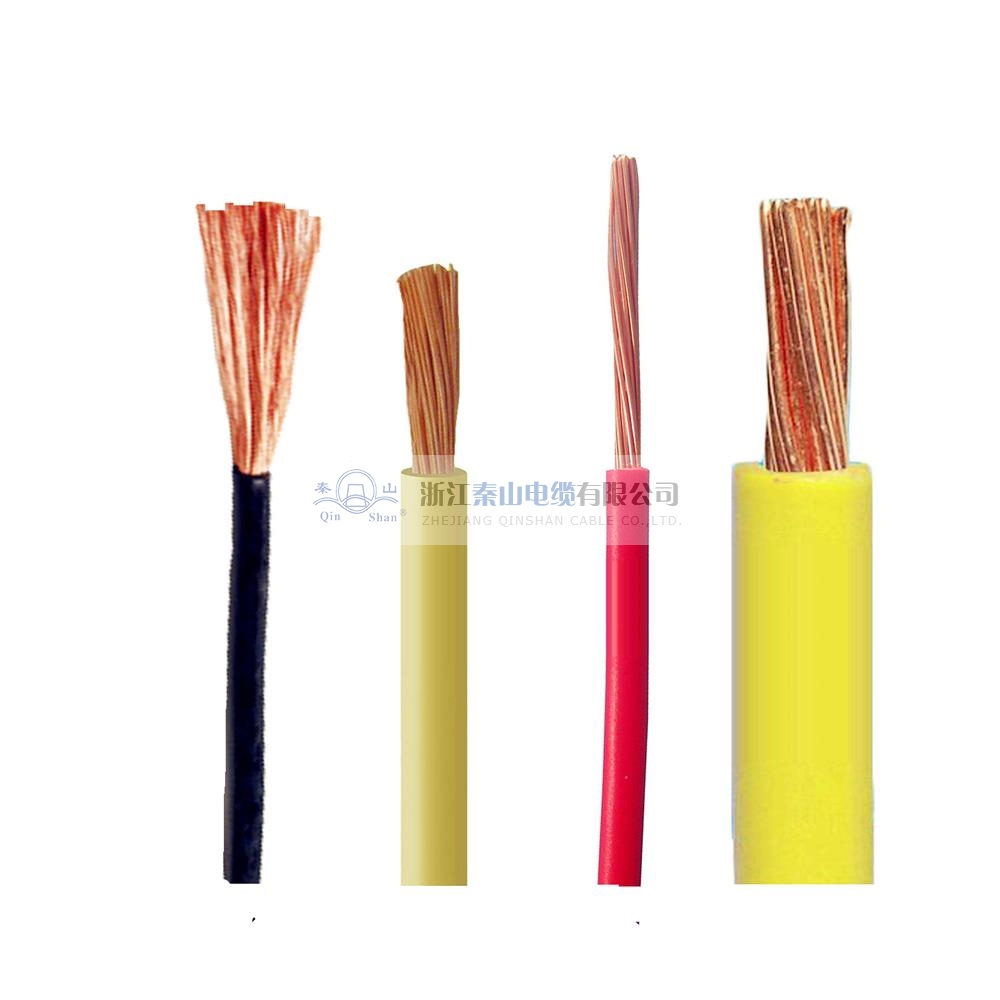

0.5mm Copper core PVC insulated flexible (RV) wire
Conductor:
- Plain circular Flexible copper conductor, comform to IEC 60228 class 5
- Plain circular stranded copper conductor, comform to IEC 60228 class 2
Insulation: PVC
Applications:
to be used for apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster.
Standards:
IEC 60227; GB/T 5023-2008 or as per requirement
Technical data:
Rated voltage: 450/750 V
Max. Conductor Temperature: 70
Min. Bending Radius: 4 times of diameter
