Quick Details

Coating:	Long Foam Milling CNC Tools
Type:	End Mill
Diameter:	6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, etc.
Material:	High Speed Steel
Brand Name:	RicoCNC
Model Number:	Ball End and Flat End Long flute foam cutting router bits
Place of Origin:	China (Mainland)

Specifications

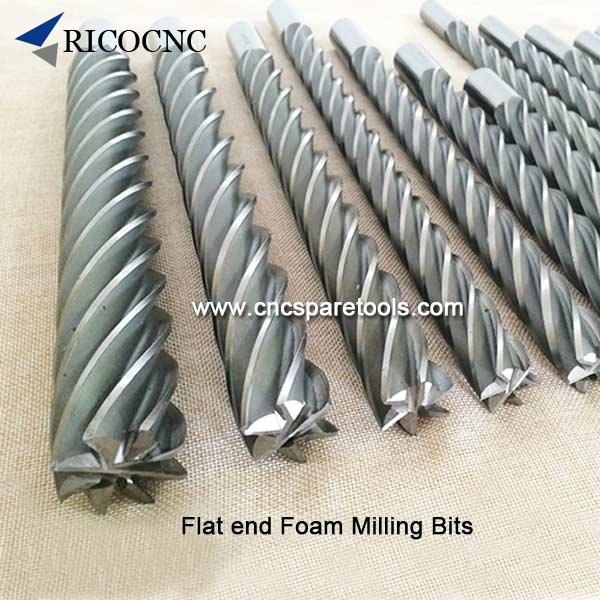

Long Foam Cutting Tools EPS Foam Milling Router Bits Ball End and Flat End
Model: Ball End and Flat End Long flute foam cutting router bits

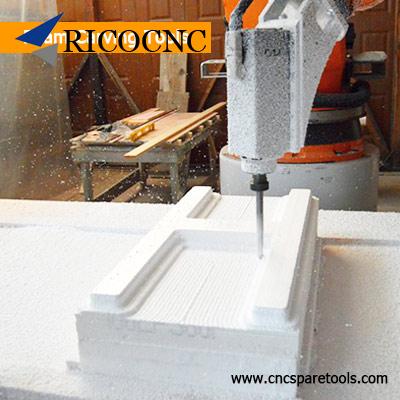

these long series foam end mill and ball nose are widely used with robot milling machine and which used to cut molds from EPS foam, polyurethane foam, EVA foam, plastic, etc. The long foam cutting tools are great for extended reach machining, deep foam cutting, CNC sculpting big items, . They are helpful mills for building CNC foam moulds and for advertising signs making.

Long Foam Milling CNC Tools Features:
1, High Speed Steel (HSS) hardness: HRC 61-64.5
2, Sharp spiral blade for clear smooth finishing (4 flutes or 6 flutes or 8 flutes)
3, Extended Reach for deep foam cutting, carving and milling
4, Foam milling bits size could be DIY customized

Ricocnc can supply round end (ball end) and flat end (End mill) foam mill bits:

Diameter: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, etc.


Item No.	SHK	CED	Radius	CEL	OVL
D6xR3x100x150 4T	6	6	3	100	150
D8xR4x100x150 4T	8	8	4	100	150
D10xR5x100x150 4T	10	10	5	100	150
D10xR5x150x200 4T	10	10	5	150	200
D12xR6x100x150 4T	12	12	6	100	150
D12xR6x150x200 4T	12	12	6	150	200
D16xR8x150x200 4T	16	16	8	150	200
D16xR8x200x250 4T	16	16	8	200	250
D16xR8x250x310 4T	16	16	8	250	310
D16xR8x300x360 4T	16	16	8	300	360
D16xR8x350x410 4T	16	16	8	350	410
D20xR10x200x250 6T	20	20	10	200	250
D20xR10x250x300 6T	20	20	10	250	300
D20xR10x300x360 6T	20	20	10	300	360
D20xR10x350x410 6T	20	20	10	350	410
D25xR12.5x200x250 6T	25	25	12.5	200	250
D25xR12.5x250x300 6T	25	25	12.5	250	300
D25xR12.5x300x350 6T	25	25	12.5	300	350
D25xR12.5x350x400 6T	25	25	12.5	350	400
D30xR15x300xd25x360 6T	25	30	15	300	360
D32xR8x300x360 8T	32	32	8	300	360
D32xR8x350x410 8T	32	32	8	350	410
D32xR8x450x500 8T	32	32	8	450	500
D34xR10x300xd32x360 6T	32	34	10	300	360
D40xR12x300xd32x360 8T	32	40	12	300	360
D40xR12x350xd32x400 8T	32	40	12	350	400
D40xR12x450xd32x500 8T	32	40	12	450	500


Item No.	SHK	CED	CEL	OVL
D6x100x150 4T	6	6	100	150
D8x100x150 4T	8	8	100	150
D10x100x150 4T	10	10	100	150
D12x100x150 4T	12	12	100	150
D12x150x200 4T	12	12	50	200
D16x150x200 4T	16	16	150	200
D16x200x250 4T	16	16	200	250
D16x250x310 4T	16	16	250	310
D16x300x360 4T	16	16	300	360
D16x350x410 4T	16	16	350	410
D20x200x250 6T	20	20	200	250
D20x250x300 6T	20	20	250	300
D20x300x350 6T	20	20	300	350
D20x350x400 6T	20	20	350	400
D25x200x250 6T	25	25	200	250
D25x250x300 6T	25	25	250	300
D25x300x350 6T	25	25	300	350
D25x350x400 6T	25	25	350	400
D30x300xd25x360 6T	25	30	300	360
D32x300x360 8T	32	32	300	360
D32x350x400 8T	32	32	350	410
D32x450x500 8T	32	32	450	500
D34x300xd32x360 6T	32	34	300	360
D40x300xd32x360 8T	32	40	300	360
D40x350xd32x400 8T	32	40	350	400
D40x450xd32x500 8T	32	40	450	500

Please choose the suitable item you need, and decide the quantities.

Payment can be made by Western Union, Paypal, T/T.
