Certification: | RoHS |
---|---|
Application: | Refrigeration Parts |
Type: | Heat Exchanger Tube |
Brand Name: | JOYRUNS |
Voltage: | 5 |
Model Number: | 4.76mm, 6mm, 8mm, 12mm |
Place of Origin: | China (Mainland) |
copper coating: | 0.3UM |
Quick Details
Specifications
Product Description
We can supply all kinds of condenser coated bundy tube, copper coated tube, codenser pipe, bundy tube, steel pipe

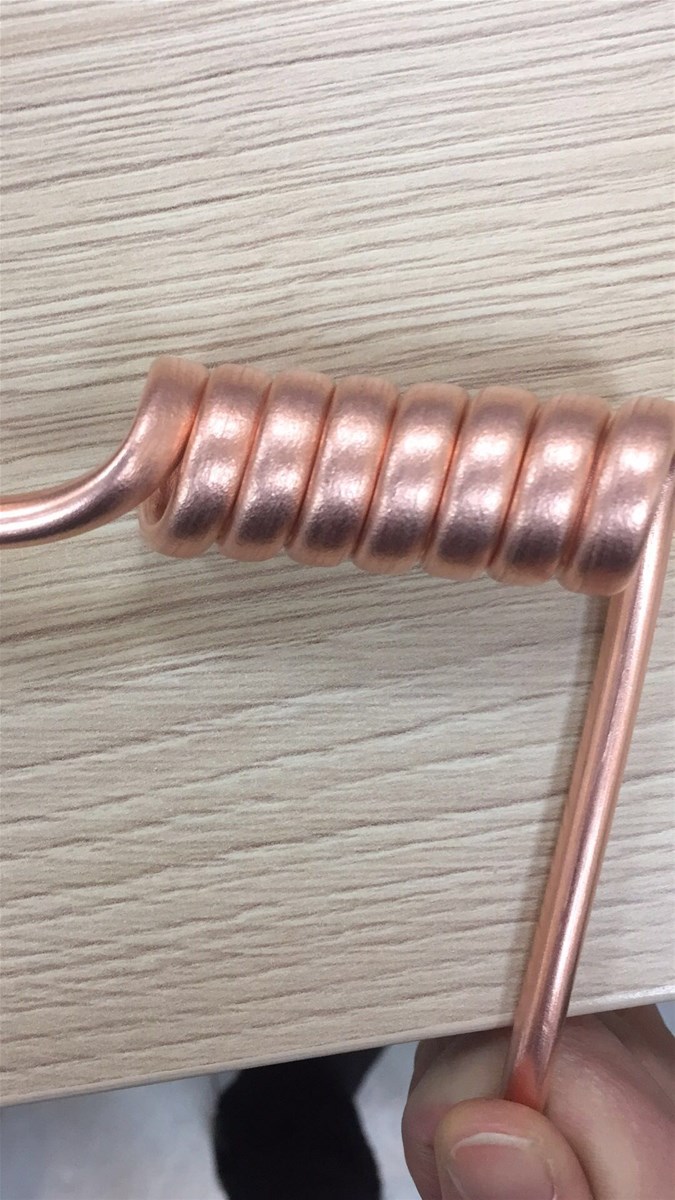

1.Product name: copper coated bundy steel tube
2. standard and Materia:ASTM A254 BHG2 low carbon steel
3. Size:OD 4mm --12.7mm, W.T: 0.5mm--1.0mm
4. Copper coating thickness: 0.3um+/-0.05um
5. Treatment: copper coated
6. Product application: refrigeration,auto brake system
7. Surface outlook: both ends of tube without rag, corner processing, smooth, absence of istortion.
8. Packing: plastic bag inside, iron frame fixed
9. Certification: ISO9001, ROHS
Chemical Composition | ||||
C |
Si |
Mn |
P |
S |
0.08% |
0.03% |
0.03% |
0.02% |
0.02% |
Chemical Composition
Machnical Properties
Tensile Strength |
290Mpa |
Yield Strength |
180Mpa |
Elongation |
20% |
Salt spray test |
24hours |
Inside Surface Cleanliness |
20g/m2 |
the tolerance allowed for the OD of the steel tube:
OD |
the tolerance allowed (based on no coating) |
< 4.76 |
0.05mm |
4.76 ~ 8.00 |
0.08mm |
> 8.00 ~ 12.00 |
0.10mm |
the tolerance allowed for the thickness of the steel tube:
Thickness |
the tolerance allowed (based on no coating) |
0.50 |
0.07mm |
0.70 |
0.08mm |
1.00 |
0.09mm |
