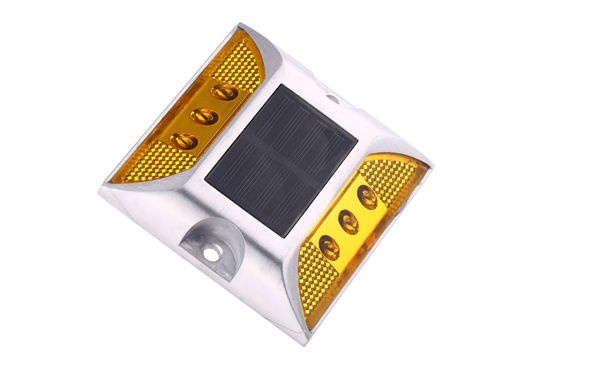

LED road stud is the flashing solar cell powered and maintenance-free lighting device used in road construction to delineate and /or illuminate the lanes to road users during the day and night.
2) the green reflective studs are charged up during the day by sunlight through the solar panels and flash at night. Embedded in the road surface, LED road stud is an electronic improvement on the traditional cats' eyes in that LED road stud may give drivers more than thirty-second reaction window compared with about 3 seconds for conventional reflective devices.
3) the LED road stud is also more visible in rainy and foggy conditions which are problematic for the old plastic reflective road markers.
4) the green reflective studs reduce the necessity of headlight main beams and the accompanying hazard of dazzling oncoming drivers.



Why ZOJE

Solar powered high intensity LED for superior performance in luminosity.
High-quality Ni-Mh battery adapting high temperature.
Improved design, reflective installed inside, better water proof performance: IP68
Aluminum shell with strong compressive resistance.
Easy to install with virtually no maintenance.
Red blue white yellow-green color.
the double side LED road stud or single face green reflective studs can be designed.





 ? Just come and contact us!



Specification of Green Reflective Studs

Model	ZOJE-RS105
Material	Aluminum+PC
Power supply	Monocrystalline solar panel
	2.5V/150mA for NI-MH
	5V/60mA for lithum battery
	3V/120mA for super capacitor
Battery	NI-MH 1.2V/ 600mAh(high temperature resistance)
	Lithum battery 3.2V/500mA
	Super capacitor2.3V/120mA (made in Korea)
Lens	PMMA(ASTM D4280 & EN 1463-1 standard)
LED	Ultra bright, diameter 5mm( 6pcs)
LED color	Red,yellow,green,blue,white
Working model	Blinking or constant(charged at daytime, working automatically at night)
Working hours	(1).Blinking:140hours for NI-MH battery; 130hours for lithum battery;  30hours for super capacitor after fully charged
	(2).Constant:40hours for NI-MH battery; 35hours for lithum battery;  15hours for super capacitor after fully charged
Visual distance	>800m
Water proof	IP68
Resistance	20T
Lifespan	2years for NI-MH battery;
	5years for Lithum battery;
	10years for 120F super capacitor
Size	123mm*133mm*22+55mm
Packing	1pc/box;45pcs/ctn
Carton size	66.5*44*28cm
Weight	30kgs/ctn
Certificate	CE & ROHS
