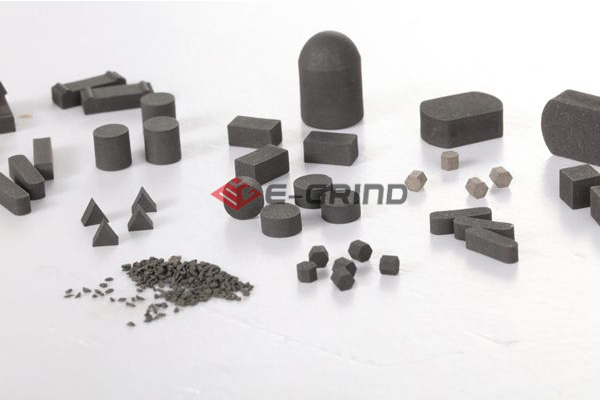

TSP is made of diamond micro powder and a small amount of binder sintered under high temperature and high pressure. It has high wear resistance, strong impact toughness, good thermal stability, and dense structure, and is widely used in the manufacture of petroleum, geological drill bits, and Machining tools and gem processing.
(TSP) is also called polycrystalline diamond solid pieces. TSP consists of diamond powder & bonder and is made in an ultra-high pressure and high temperature. TSP features good thermal stability up to 1200C, due to its thermal expansion binder the same as diamond and its chemical inertness.
Application: drilling bits and gauging.
We supply all types of TSP with various shapes and hardness.
Diameter x length x angle |
|
1x1.2x120 |
1.0x1.0x1.0 |
1.2x3.5x120 |
1.5x1.5x1.5 |
1.1x3.5x180 |
1.5x1.5x3 |
1.5x3.5x180 |
1.5x1.5x4/5 |
1.5x4x180 |
2x2x2 |
1.8x4x180 |
2.5x2.5x2.5 |
2x4x120/180 |
2.5x2.5x5 |
2.7x4x120 |
2.6x2.5x1.5 |
3x3x180 |
3x3x3 |
3x2.6x180 |
3.5x3.5x3.5 |
3x5x120/ 180 |
3x3x4 |
3x6x120 |
3x3x6 |
3.3x6.3x180 |
3x3x5 |
4x4x180 |
4x4x2.5 |
4x5x90/180 |
4x4x4 |
4x6x120 |
4x4x6 |
5x4x180 |
4x4x8 |
5x5x120/180 |
5x5x5 |
5.3x2.1x180 |
5x5x8 |
6x3x180 |
5.3x3.2x1.5 |
6x4x180 |
16x12x6 |
6x6x120/180 |
4x4x4x2.6 |
6x8x120/180 |
5x5x5x3 |
6x12x120/180 |
6x6x6x3.5 |
6.3x3.3x180 |
6x6x6x4 |
6.3x5.2x3.3x180 |
6x6x6x4.5 |
8x2.6x180 |
6x6x6x5 |
10x2.2x180 |
6.2x6.2x4.3 |
13x2.5x180 |
7x7x7x2 |
13x3x180 |
3x3x10 R1.5 |
13x3.5x180 |
Hexaganal 8x3.5 |
18.8x3.2x180 |
|
