| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Certification: | CE |
| Usage: | Plastic welding |
| Dimensions: | 90-315 |
| Brand Name: | DERUIBAO |
| Power: | 4.95KW |
| Input Voltage: | 220V |
| Model Number: | DRB315Y |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Gross weight: | 200KG |
| Volume: | 0.761CBM |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:

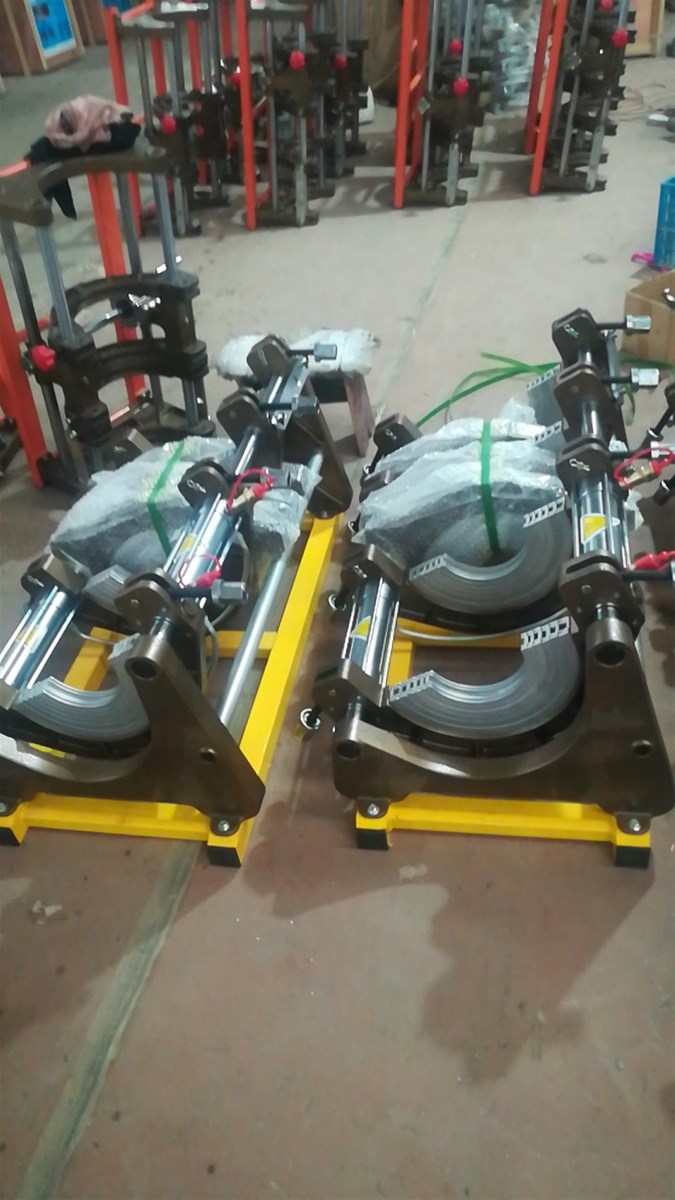

Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.
Removable PTFE coated heating plate with high accurate temperature control system.
Electrical planing tool.
Reliable structure design, suitable for multi-jobsites.
Low starting pressure ensures reliable welding quality of small pipes.
Changeable welding position enables to weld various fittings more easily.
High accurate and shockproof pressure meter.
Separate two-channel timer records time in soaking and cooling phases.
2.Techincal parameters:Type
SHD315/90 Materials
PE, PP, PVDF Max. range of diameter
315mm Environment Temperature
-5~45℃ Power Supply
~220 V±10% Frequency
50/60 Hz Total current
27A Total power
4.85KW Include : Heating Plate
3 KW Planing tool Motor
1.1 KW IP54 Hydraulic Unit Motor
0.75 KW IP54 Dielectric resistance
>1MΩ Max. Pressure
6.3MPa Total section of cylinders
20cm2 Volume of oil box
3L Hydraulic oil
40~50(kinematic viscosity)mm2/s, 40℃) Undesired sound
80-85 dB Max. Temp. of Heating Plate
270℃ Difference in surface temperature of heating plate
±5℃ Basic frame
Size,mm
960*670*730
Weight,kg
99 Hydraulic unit
Size,mm
660*450*580
Weight,kg
45 Planing tool,heating plate,support
Size,mm
760*570*760
Weight,kg
50 Total weight(N.W),kg
194
3.Performance features:
