| Brand Name: | X-team |
|---|---|
| COLOR: | Black |
| Material: | Metal |
| Size: | Standards |
| Sample time: | 4 days after payment |
| Model Number: | 8318 |
| Place of Origin: | China (Mainland) |
| Metarial : Metal: | Production Capacity:10000 pieces /per month |
| Minimum order: 1 piece: | Certification: CE& FCC &ROHS |
| Type:Blushless Motor: | Condition: New, A brand-new, unused, unopened, undamaged item |
Quick Details
Specifications
Specifications:

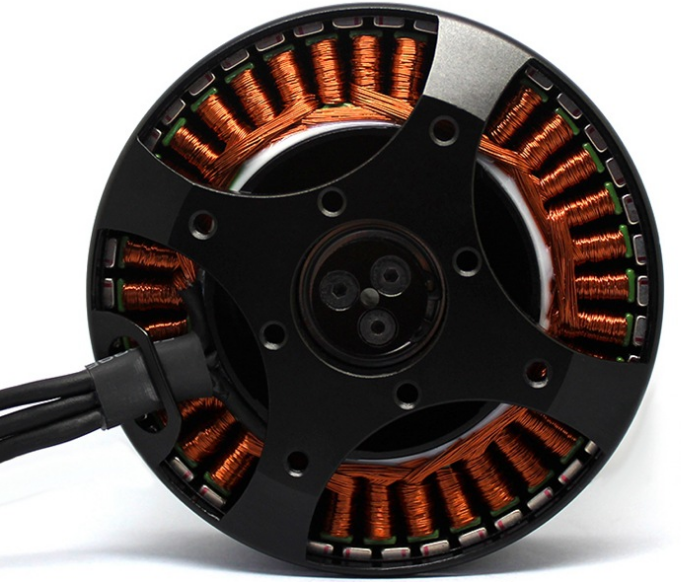

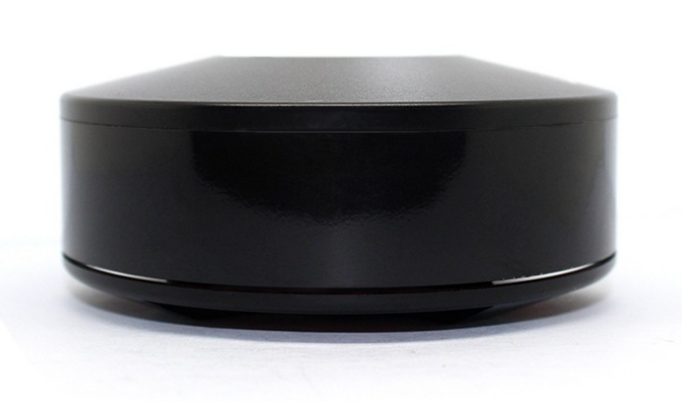

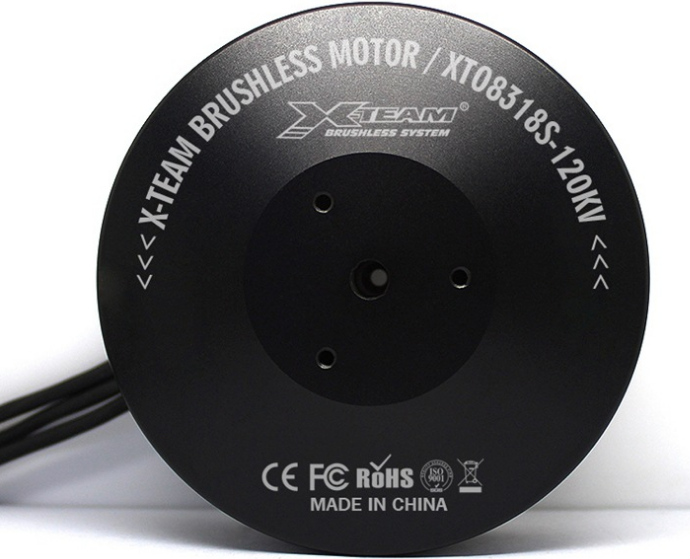

ML8318 Motor/120KV
Motor KV: 120KV RPM/V
Motor Resistance (RM): 0.0692 Ω
Idle Current (Io/10V): 1.1A/10V
Max Continuous Current: 62A
Max Continuous Power: 2000W
Weight: ≈635g/22.4oz
Lipo Cell: 3-12S
Motor Diameter: 92mm/3.62in
Motor Body Length: 37.8mm/1.49in
No. of Stator Arms: 36
Pole Count: 42
Overall Shaft Length: 38.3mm/1.5in
Bolt holes spacing: 32mm/40mm/1.26in/1.57in
Bolt thread: M416
Maximum thrust: 12500g
Package includes:
ML8318 120KV motor
Attention:
When using the screws we provide, pay attention to the thickness of the motor mounting plate. If the mounting plate is too thin, it may cause the screws to be too long to be pushed up to the motor coil.
