Output Current: | 0.3A-0.001A |
---|---|
Output Power: | 3-5W |
Output Voltage: | DC12V-160V |
Input Voltage: | AC85V-265V |
Brand Name: | FAT |
Model Number: | FAT-LED-F1A-2 |
Place of Origin: | China (Mainland) |
Suitable for lamp power: | 3-40W ( MAX 60W ) |
Battery: | 3.7V 2400mAH lithium battery |
Emergency time: | 120 mins |
Charge time: | less than 24 Hours |
Material: | Aluminum & ABS |
Product size: | 130*55*21mm |
Certificate: | CE, RoHS |
IP degree: | IP30 |
Warranty: | 3 years |
Quick Details
Specifications
Product description:

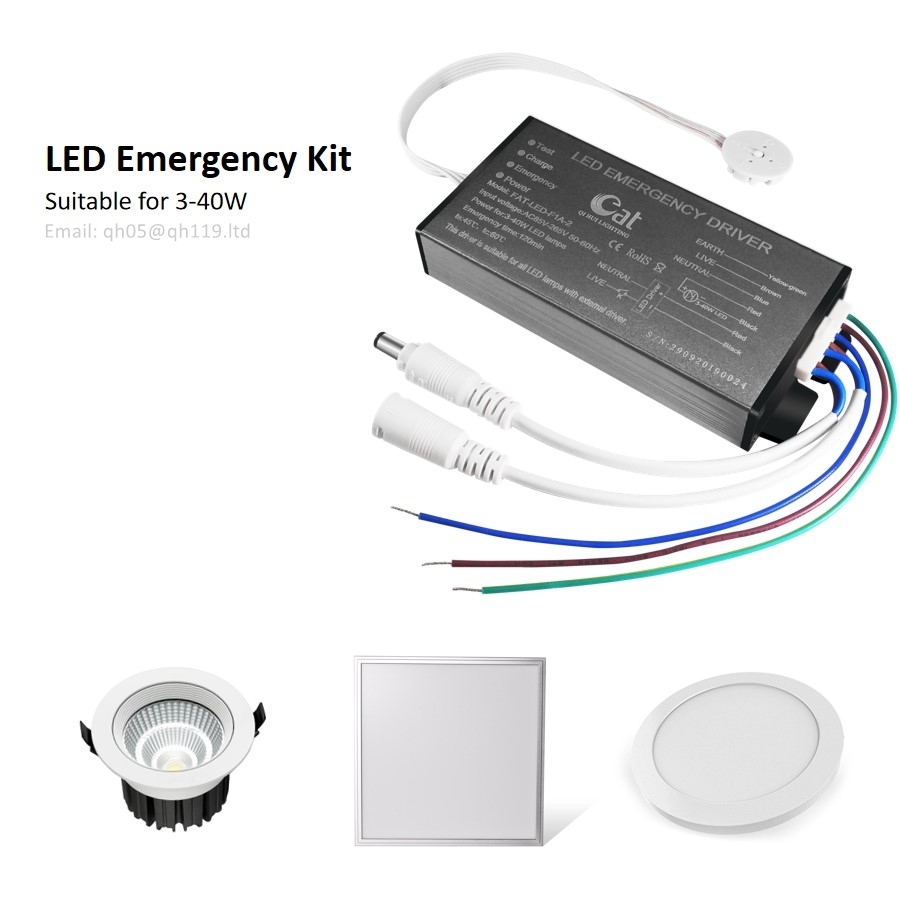

Professional design for constant power emergency driver with patent certification. this LED emergency driver has CE & RoHS certificaes. the emergency drive board and lithium ion battery are built-in the aluminum alloy casing, it is safety for using. this is energy saving for the LED emergency kit solut for LED light with external driver.
3-40W LED emergency driver specifications:
1. Lighting fixture power: 3-40W ( MAX 60W )
2. Emergency power: 3-5W
3. Battery type: built-in 1 piece rechargeable 3.7V 2400mAH lithium ion battery
4. Emergency duration time: 2 hours
5. Battery cycle time: 500 times
6. Working input / output voltage: AC85-265V, DC20-160V
7. Emergency output voltage: DC12-160V
8. Charge time: ≤24 hours
9. Protection degree: IP30
10. Warranty: 3 years
LED emergency driver Features:
- Applicable to all kinds of LED lamps with external LED driver.
- Self-check function ( 30 days and every year ).
- Automatically turns on LED light when there is a main power failure.
- LED emergency power box has overload protection, short circuit protection, overcharge and over-discharge protection, wire fault connection protection, over temperature protection.
- External indicator: green=power, red=charging, blue=emergency
Working Environment attention:
Aluminum shell emergency driver working temperature between -5℃ and 45℃ .
If the LED emergency module is not used for over 3 months, it should be connected to AC power to full charging and discharging ( until LED lamp is completely off ).
