| Usage: | test density and purity |
|---|---|
| Power: | Electronic |
| Brand Name: | MatsuHaku |
| Warranty: | 1 year |
| weight: | 3 kg |
| Place of Origin: | Taiwan |
Quick Details
Specifications
Suitable for:
Jewelry industry, Bank, Pawn industry, Gold and Precious Metal research lab.
Principle:
According to the buoyancy method of Archimedes principle,
Gold karat, density and purity % can be showed rapidly and accurately.
Gold karat, density and purity % can be showed rapidly and accurately.Mode:
It has four functions:
- Gold Purity measuring mode--measuring gold purity.
- Platinum purity measuring mode--measuring platinum purity.
- Alloy purity and density measuring mode 1--measuring the other precious metal purity.
- Alloy purity and density measuring mode 2--measuring the other precious metal purity.
Specific:
Model
|
TWS-153K
| ||
Max Weight
|
150g
| ||
Weighing Precision
|
0.001g
| ||
Density Precision
|
0.0001g/cm3
| ||
Gold Mode |
Karat
|
1K and 0.1K display (switchable)
| |
Purity
|
1% and 0.1% display (switchable)
| ||
PT Mode |
PT
|
25PT and 1PT display (switchable)
| |
Purity
|
1% and 0.1% display (switchable)
| ||
Alloy Mode
|
1% and 0.1% display (switchable)
| ||
Functions:
- with PS-232 & USB interface.
- with Infrared temperature sensors can automatically detect water temperature and automatically compensate for water temperature.
- Quick and accurate determination of precious metal purity% and gold K number, just two measurement steps.
- No trace or contamination will be left after the measurement, no need to use sulfuric acid solution or test standard samples.
- Special software design can directly display gold Karat number and purity% (including gold copper silver, gold silver, gold copper).
- with the setting function of the lower limit of Karat value, Karat number can be set freely from 1 to 24K.
- with the function of setting the lower limit of PT value, PT value can be set freely from 1 to 1000.
- with alloy purity measurement function, can test other precious metals. for example: platinum, silver, palladium, copper, rhodium... etc.
- Cannot test the samples with gems and hollows. Can be used as a general balance.
- the large tank design is adopted to reduce the error caused by the buoyancy of the hanging rail. the size of the water tank is 148 100 85mm.
Style:

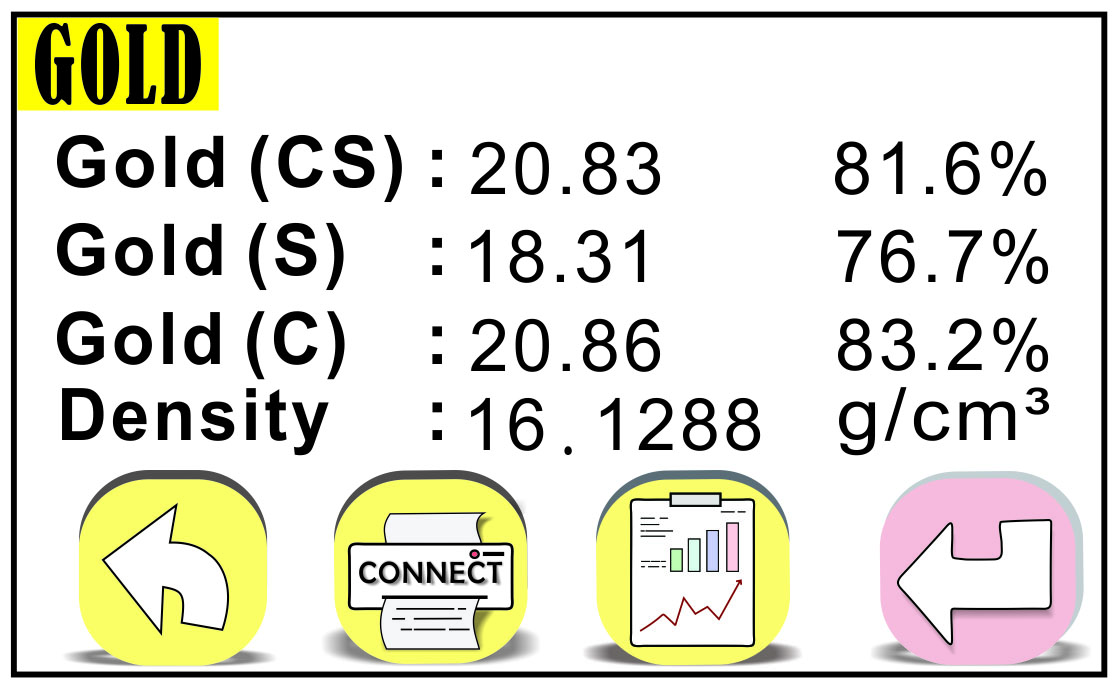

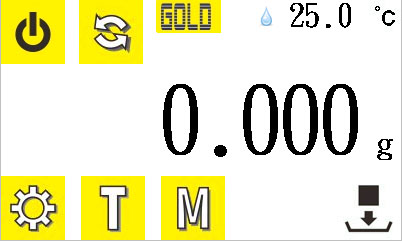

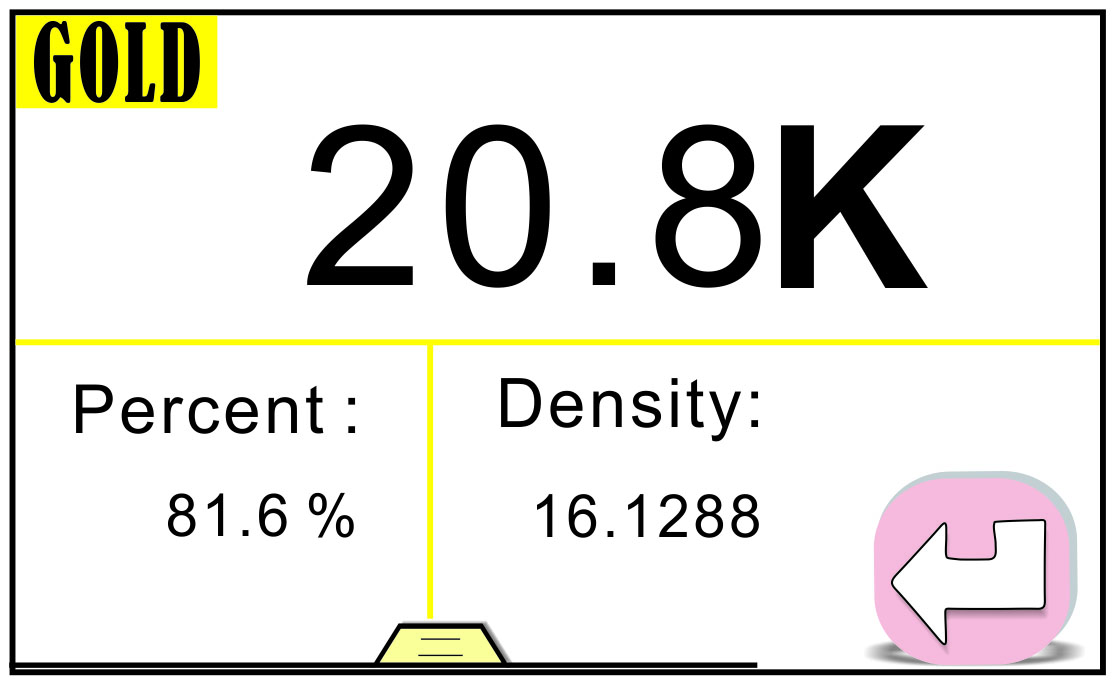

1. Touch Screen: 2. Show main result 3. Show detail result
3. INfrared temperature sensor Detect and correct the temperature automatically.
Made in Taiwan - Densimeter Expert

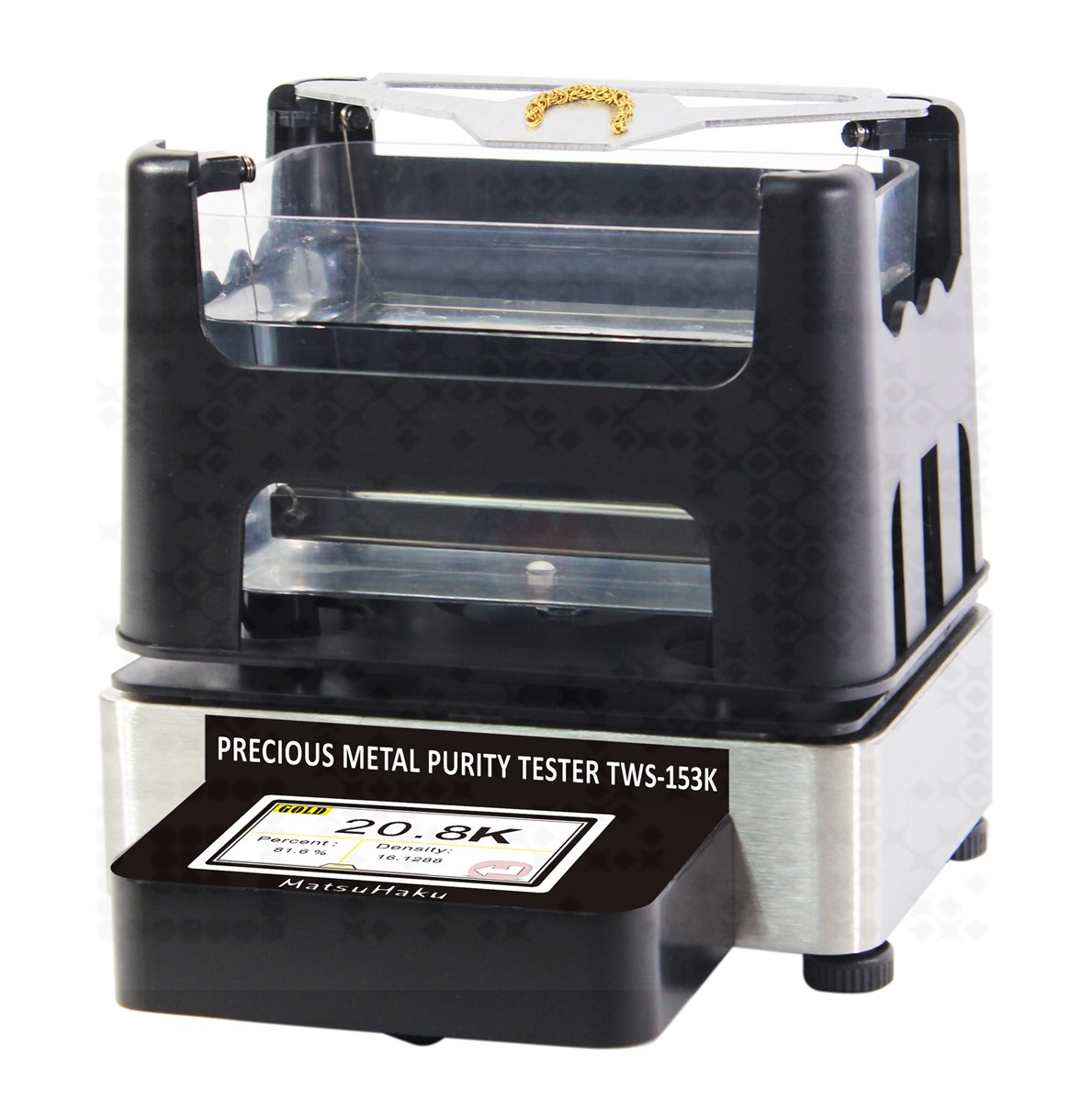

Precious Metal Purity Tester TWS-153K
