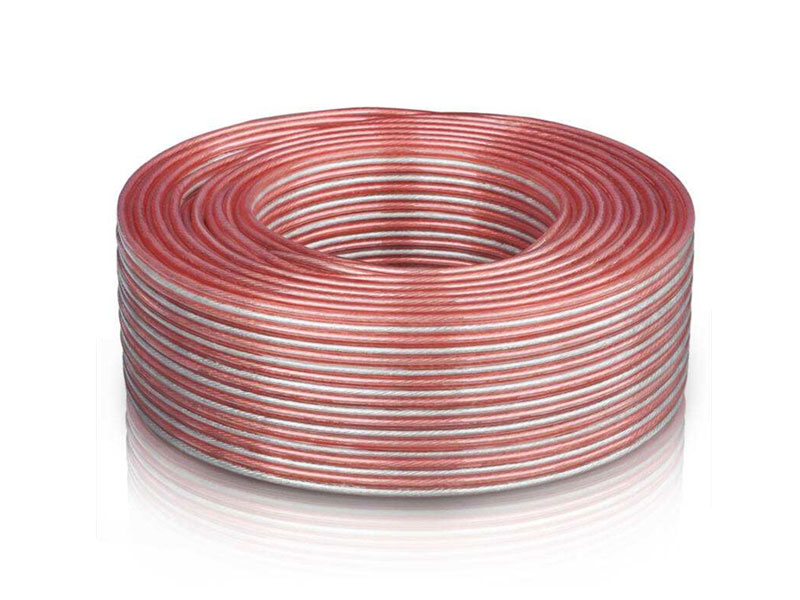

Features of UL2468 PVC Parallel Speaker Wire:

Rated Temperature: 80℃



Rated Voltage: 300 Vac



Fire Resistance: UL VW-1 & CSA - FT1



Conductor: 2-150, Nos. 32-16 AWG. Tinned or bare, solid or stranded copper, conductors laid parallel and in one plane. Same or mixed AWG.



Insulation: Extruded PVC, 15 mils minimum average thickness, 13 mils minimum thickness at any point.



Assembly: Two to one hundred and fifty conductors laid parallel and in one plane. May use same or mixed AWG size. Minimum average and minimum at any point of insulation thickness after ripping shall be 15 mils and 13 mils, respectively. this forms a flat cable with a single row of conductors having a 1/2 in. Maximum width web between insulated conductors.



Shielding: Optional



Jacket: Optional, extruded PVC, 5 mils minimum thickness at any point, 80 mils maximum thickness.







Standard: Appliance Wiring Material UL 758.



RoHS & REACH compliance



Resistant to acids, oils, alkalis, moisture & fungi.



Use: Internal wiring.



We are one of the best,we procuce,, flat speaker cable,best outdoor speaker wire,8 conductor speaker wire,4 wire speaker wire and 4 conductor speaker wire.
