Product Name:

Sanitary stainless steel SS304 SS316L Pneumatic Tank Bottom seat Valve

Valve Body Material:

1.4435/1.4301, SS304/SS316L(Forged)

Seal Material:

EPDM (standard) conforms to FDA177.2600

Surface Finishing

Mechanically polishing, Sand blasted

Operating Principles:

Tank Bottom Valve is operated by pneumatic actuator, Air-Spring or Air-Air, Compressed Air push valve shaft to on or off position,
Valve Seat open inside to avoid auto opening when pipeline over pressure.

Max Working Pressure:

10Bar/145 PSI

Max. Working Tem.:

140 degree C

Air Pressure:

5-7 bar G1/8"(BSP)

Availably Size:

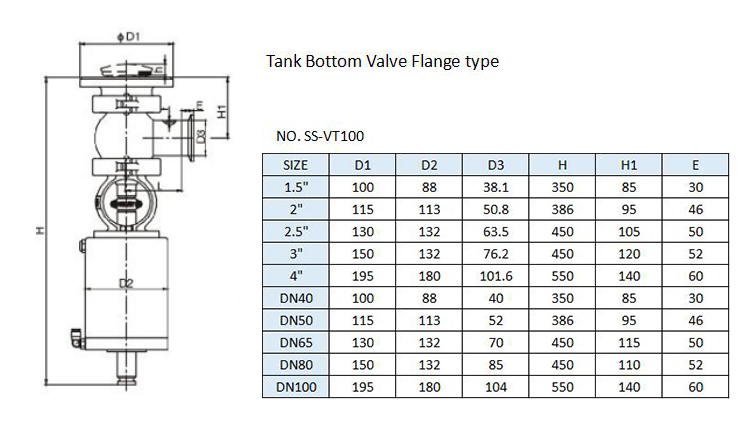

DN40-DN100,1.5"-4"

Features

EN10204-3.1 B Mill cert is offered

PED 2014/68/EU

FDA.177.2600

the valve body can be changeable with any kind of connection

Availably standard:

DIN/SMS/RJT/ISO/IDF

Operated:

Pneumatic

Options

Gasket: EPDM, silicone or Viton

Connection:weld,clamp,thread,

Control:

Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(as-I)

Certificate:

PED 2014/68/EU, FDA.177.2600
