Brand Name: | Optech |
---|---|
Wavelength: | 1310nm |
Data Rate: | 400Gb/s |
warranty: | 1 year |
Connector: | Duplex LC |

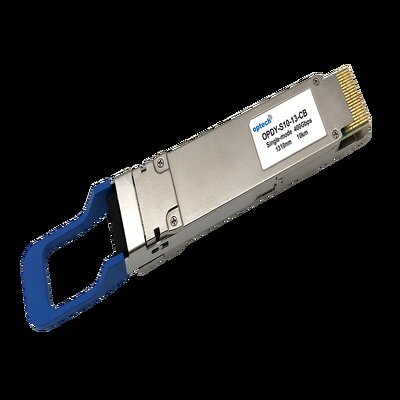

Model Number: | OPDY-S10-13-CBE |
Place of Origin: | Taiwan |
Quick Details
Specifications
Features
* QSFP-DD MSA compliant
* 4 CWDM lanes MUX/DEMUX design
* 100G Lambda MSA 400G-LR4 Specification compliant
* up to 10km transmission on single mode fiber (SMF) with FEC
* Operating case temperature: 0 to 70oC
* 8x53.125Gb/s electrical interface (400GAUI-8)
* Data Rate 106.25Gbps (PAM4) per channel.
* Maximum power consumption 12W
* Duplex LC connector
* RoHS compliant
Applications
* Data Center Interconnect
* 400G Ethernet
* Infiniband interconnects
*Enterprise networking
