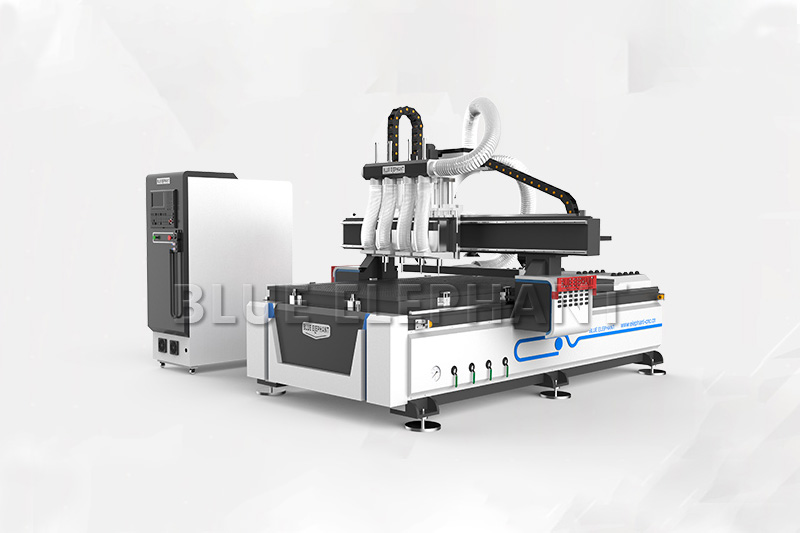

this multi-head CNC router is equipped with four spindles, which are multi-purpose and economical. In addition, the four spindle spindles can work at the same time, which greatly improves the production efficiency on the basis of ensuring product consistency. Heavy-duty frames and gantry beds make the machine more durable. so this machine is a good choice for your mass production.



Features:

the normal frame is not easily deformed to ensure stability during high-speed operation, low inertia and no distortion. and these are typical features of multi-spindle CNC Routers.

Assembled with original HIWIN linear square guide rail and doubt-nuts anti-gap rod ball screw, and Germany made slanting rack,to ensure high accuracy, low noise and long life.

Taking  for example, there have lots of differences between them.

Adopting high-speed 2.2kw Changsheng water cooling spindle(top brand in China) with constant torque,high-performance drive motor to ensure the long time and stable working.

DSP A18 control system for 4 axis CNC router.



Parameter:

Working area	1300*2500*200mm
Spindle	HSD spindle
Spindle rotating speed	24000RPM
Motor	FL118 stepper motor
Driver	YAKO stepper driver
Inverter	FULING inverter
Control system	DSP A18
X,Y,Z axis	Taiwan ball screw
Table surface	T-slot working table
Positioning accuracy	±0.02/mm
Re positioning accuracy	±0.01/mm
Max. Engraving speed	6,000 mm/min
Max. Motion speed	8,000 mm/min
Tools diameter	ER20
Compatible software	Type3,Ucancam,ArtCAM
Support software	Windows98/2000/XP
Working supply	220/110 V, 50/60HZ
Option	Vacuum table, dust collector, rotary device, mist sprayer, flume

Application

the machine can be widely used for furniture( table legs, chair legs), stair handrails, sculptures, 3D relief and so on.



about BLUE ELEPHANT



 is a high-tech enterprise specializing in the development and manufacture of automated woodworking equipment and CNC equipment. Our main products include ATC CNC router, 4-axis, high-end customized furniture production line, luxury nesting CNC, mature wardrobe nesting machine, CNC five-sided drilling, six-sided drilling, CNC machining center, automatic drilling machine, CNC drilling, etc. All our CNC routers are widely used in plate-type furniture, custom cabinet, solid wooden furniture and some other non-metal machining areas.
