| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year after machine running |
| Voltage: | 380/400/440 |
| Brand Name: | Xingwang |
| Condition: | New |
| Weight: | According to machine final design |
| Dimension(L*W*H): | According to machine final design |
| Power(W): | According to machine final design |
| Model Number: | 1092mm-5600mm |
| Place of Origin: | China (Mainland) |
| Processing Type: | |
| Product Type: |
Quick Details
Specifications

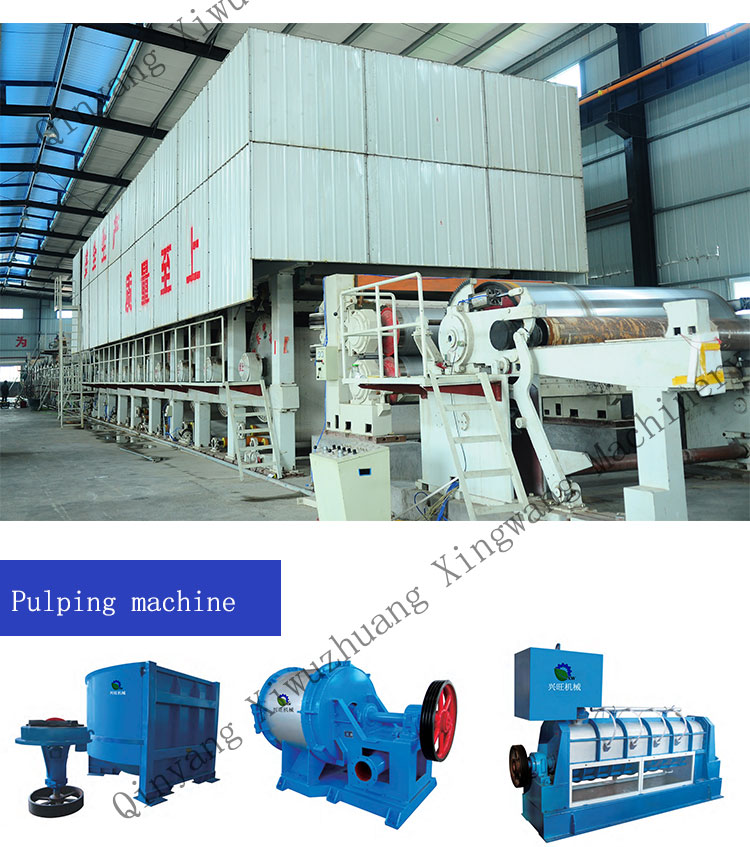

High speed kraft/corrugated/carton paper making machine
Main technical parameter:
Output paper:craft paper, carton paper, sheet lining
Raw material:waste paper
Grammage:110-240g/m2
Net paper width:2400mm
Wire width:2850mm
Capacity:55-60T/d
Rail space:3200mm
Output paper humidity: 4%~8%
Working Speed:80-120m/min
Main frames of the production line
Part name |
Equipment |
Specification |
Qty | |
Mesh cylinder part |
Cylinder mould: |
Φ1500mm2850mm |
3 | |
Couch press |
Φ450mm2850mm |
3 | ||
Reverse press |
Φ4500mm2850mm |
1 | ||
Stream pressure device |
| |||
Press part |
Stone roll |
Φ600mm2850mm |
1 | |
Rubber roll |
Φ550mm2850mm |
1 | ||
Reducer |
500 |
1 | ||
Dryer part |
Dryer can |
Φ2500mm2850mm |
2 | |
Φ1500mm2850mm |
8 | |||
Touch roll |
Φ550mm2850mm |
2 | ||
Winding part |
Cylinder type winding machine |
1 | ||
Rewinding machine |
1 | |||
Driving&control part
|
Driving & control dept: which adopts speed adjustment in AD frequency conversion & processing transmission,digital sealed ring control system and full-process monitoring system in dynamic computer | |||
