| Application: | Industrial Magnet |
|---|---|
| Shape: | Block |
| Composite: | NdFeB Magnet |
| Type: | Permanent |
| Brand Name: | FET |
| Model Number: | FET-B-001 |
| Place of Origin: | China (Mainland) |
| Material: | Rare Earth |
| Grade: | N35 to 45UH |
| Coating: | Nickel |
| Magnetized Direction: | Through the thickness or through the diameter |
| Shape: | Rectangle (Block, Cylinder, Ring, Disk, Rod, Bar, Countersunk, Arc, Segmented, Trapezoid, Irregular shapes) |
| Tolerance in size: | +/-0.05 mm |
| Packing Method: | Several pieces to Styrofoam, shield plate, carton, pallet. |
Quick Details
Specifications
Sintered NdFeb Neodymium Permanent Magnet for motor

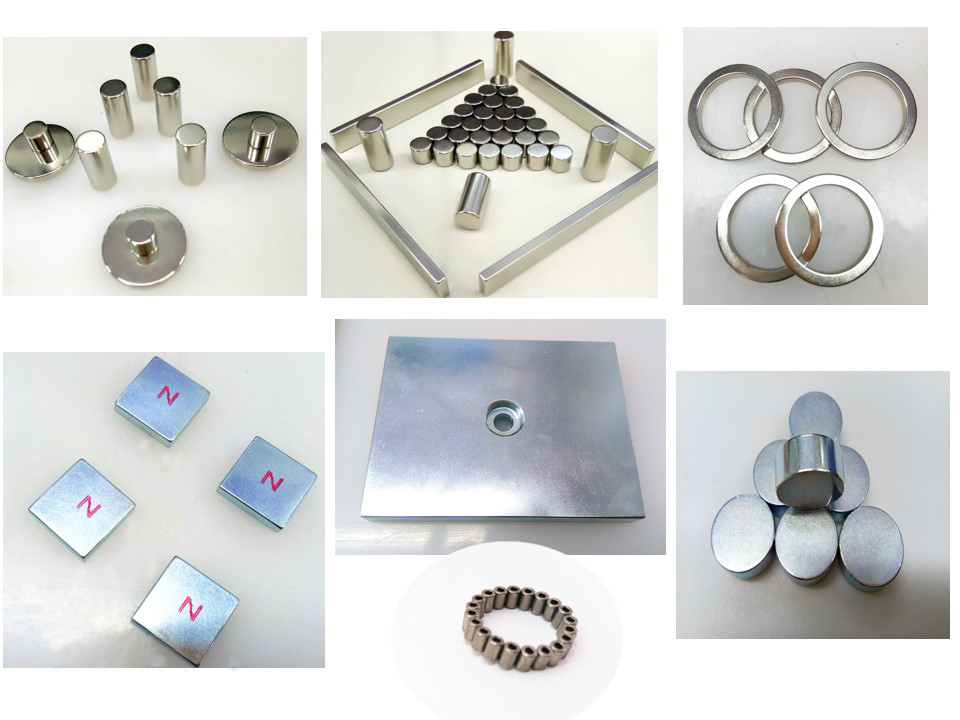

Product show:
Product show:
| Product Name | Neodymium-iron-boron NdFeB magnets available with outstanding properties |
| Shape | Ring, Disc, Cylinder, Rod, Bar, Countersunk, Segmented, Trapezoid, Arc, Irregular shapes Are available |
| Magnetized Direction | 1. Axially magnetized for disc and cylinder 2. Thickness magnetized for block, arc and other shapes 3. Diametrally magnetized for ring, cylinder and segment 4. Radial magnetized for ring magnet, the thickness of ring is within 7mm |
| Type of coating | Nickel ( Zinc, Gold or Black Epoxy are available) |
| Tolerance in size | +/-0.1 mm |
| Materials | NdFeB (Neodymium Iron Boron) |
| Dimension | Customized sizes are available. |
| Density | 7.5 (g/cm3) |
| Grade | N35-N54, N35M-N52M, N33H-N50H, N33H-N50H, N33SH-N48SH, N30UH-N45UH, N28EH-N38EH |
| Specification | 1. Made by mixed neodymium iron boron powder, through the processes of Strip casting, Hydrogen decrepitation, Jet milling, Pressing, Isostatic pressing, Sintering, Grinding, Slicer, Surface treatment 2. the most powerful magnets are available and could be directly made into various complex shapes 3. Precise dimension 4. High performance 5. Uniform magnetism 6. Rust-proof materials(coating Zinc, Nickel, Epoxy, Gold and so on) 7. Volume production Carton or Pallets SGS |
| Packing Method | Several pieces to styrofoam, shield plate, carton and pallet. |
| Certification | ISO9001, ISO14001, OHSAS 18001, RoHS, IATF16949 |
| Lead-time | 7-22days according to the order |
