the following example is for you reference.


Feature:





Technical details:

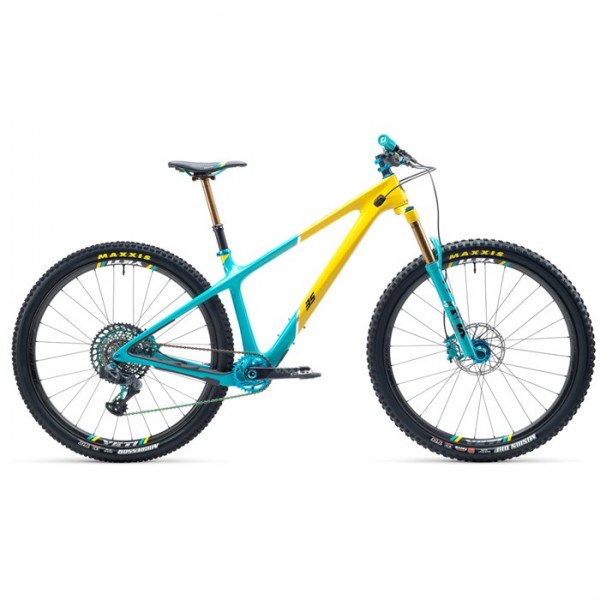

• Biking Type: Mountain
• Used for: XC
• Wheel Size: 29"
• Gearing: 1 x 12
• Handlebar Shape: Riser
• Frame Material: Carbon Fiber
• Brake Type: Hydraulic Disc
• Water Bottle Mounts: 2
• Fork: Fox Factory 34
• Stanchion Diameter (mm): 34
• Front Travel (mm): 130
• Shifters: SRAM Eagle? AXS
• Rear Derailleur: SRAM XX1 Eagle? AXS Custom
• Crankset: SRAM XX1 Eagle? 32t, 170mm Custom
• Cassette: SRAM XX1 Eagle? 1299 10-52t
• Chain: SRAM XX1 Eagle?
• Bottom Bracket: SRAM DUB BB92 Pressfit
• ISCG Tabs: ISCG05
• Brake Levers: SRAM Level Ultimate
• Brake Calipers: SRAM Level Ultimate
• Rotors: SRAM Centerline 180 / 180
• Headset: Chris King Integrated
• Handlebar: Yeti Carbon 35 x 760mm Custom
• Bar Tape/Grips: ODI Elite Pro
• Stem: Race Face Turbine R 35 x 50mm
• Saddle: WTB Silverado Custom
• Seatpost: Fox Transfer 31.6mm (XS/S 125mm, M 150mm, L/XL 175mm)
• Wheelset: Custom Wheelset
• Front Tire: Maxxis Minion DHF EXO | 29 x 2.5"
• Rear Tire: Maxxis Aggressor EXO | 29 x 2.3"
• Warranty: Limited Lifetime (Frame)

Size	S	M	L	XL
Top Tube (mm)	577.4	604.3	626.0	653.4
Seat Tube (mm)	380.0	410.0	450.0	495.0
Stack (mm)	631.7	638.9	645.1	654.3
Reach (mm)	420.0	445.0	465.0	490.0
Standover Height (mm)	723.0	722.0	720.0	720.0
Head Tube Angle (°)	67.0	67.0	67.0	67.0
Seat Tube Angle (°)	76.0	76.0	76.0	76.0
Chainstay Length (mm)	433.0	433.0	433.0	433.0
Bottom Bracket Height (mm)	310.0	310.0	310.0	310.0
Head Tube Length (mm)	95.0	102.9	109.6	119.6
Wheelbase (mm)	1143.5	1171.5	1194.2	1223.1
