SY-450 Vibration FilterIntroductionS

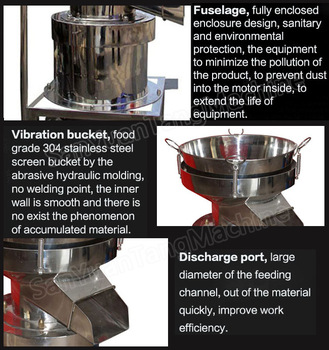

 Vibration filter machine SY-450 type vibration filter is a new and efficient filtrate equipment.It can be widely used in the filtering and screening work of pasty,powder.the minimum size of the material to process can be 5 micron.and the maximum number of the mesh is 400. Mainly applicable to the small process capacity industry ,like ceramic,painting,dope,printing ink,pharmacy, food and etc.450 type machine consists of machine body,vibrating motor,outlet hopper,sieve griddle,e-control device.
the machine adopt a new vibration structure which is more stable ,efficient and easily handled.the machine has a good-look,reasonable structure,stable performance and is easily griddle handled,cleaned and its griddle is easily changed.Especially ,it can satisfy the need of change location.



Features
 SY-450 series screen~filter is a hi-efficient,low noise,small volume screen and filtration machine which can be displaced easily. the process capacity of the spray-painting material whose bulk density is 1.1t,  can reach 1200 Kg/H,when the screen is of 325mesh.the process capacity of the flour is 700 Kg/H,when the screen is of 30mesh..to the indoor paint,the process capacity is 1.5 m3/h with a screen of 250mesh.
Application
the machine was widely adopted in the food,ceramic,pharmacy,chemical,painting,metallurgy and etc. Also had the successful application in filtrating the flour, bread flour, juice of vegetable and fruit and soybean milk.


Technical parameters

Model	Diameter(mm)	Frequency	Power	Voltage	Grain width(mm)
SY-450	400mm	1500rpm	0.25kw	220V	0.038-3mm

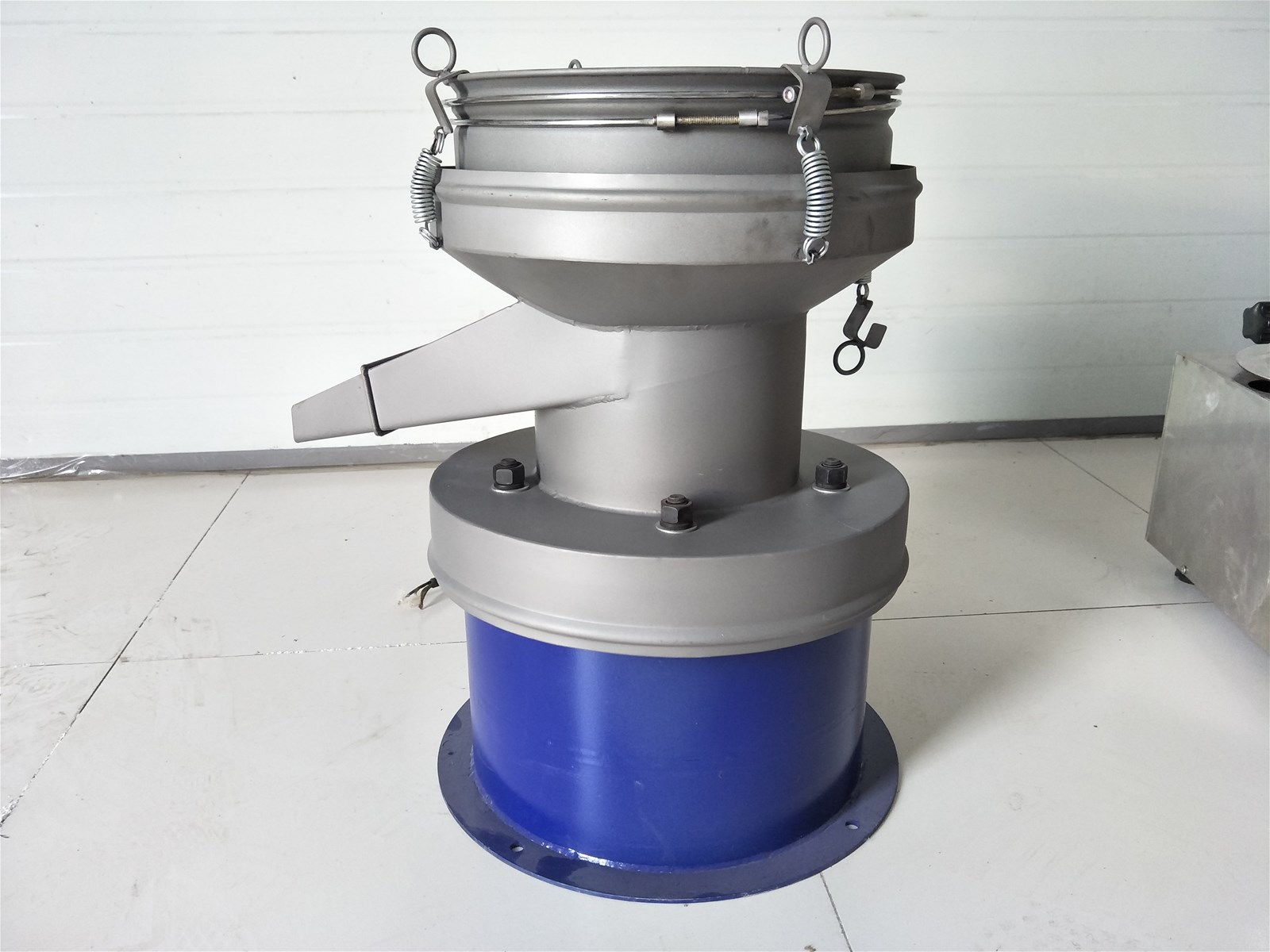

Product shows

Company Information

      Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise,    specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.

      at present, the main range of products include kinds of series of Vibrating screens, Vibrating separator,Vibration filter,  Ultrasonic vibrating screen, Sifting machines, Filtering machines, Linear vibrating screens, Testing sieve shaker, Vibrating conveyers, Screw conveyor,Bucket elevator etc.

      We have CE and ISO certification.the quality and technology of our products have reached the international advanced standard.

Other Products

FAQ about vibrating screen filter machine
how to choose a machine?
A: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
B: Customers who need us to choose the models, please follow the information, tell us:
and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading
Handling capacity: kg /h, L/h
the raw material size: (mesh or mm)
how many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.how many kinds of material are supported?
All stainless steel (304, 316L)
All carbon steel Q235
Contact part Stainless steel
3.Is it special requirement available?
Packaging & Delivery
Wooden case or as your payment
20 days after receipt of your require
this machine also could be customized by clients' specific production line requirement.
