Introduction -  VErtical vibrating elevator

Vertical conveyor can be also called as vertical elevator, spiral conveyor, spiral elevator etc.
Vertical conveyor is applicable to convey and lift materials of powder, block and short fiber. the materials can not only be lifted, but also be dried and cooled during the process of lifting.
According to customer's special request, vertical conveyor can also be designed to classify  the materials and convey flammable and explosive materials.

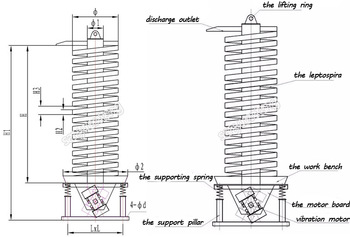

Structure- VErtical vibrating elevator
A vertical conveyor consists of a vertical screw slot, two vibration motors, shocking-absorb system and a bottom frame etc.
Working principal- VErtical vibrating elevator
Vertical conveyor uses two vibration motor as vibration source, transporting the material along the spiral groove upward by making use of synthetic amplitude of the two vibration motors. In the process of moving up, the material also can be dried or cooled at the same time.

Application

Features
Reasonable and simple structure, easy maintenance, adjustable outlet.
Low power consumption, low noise.
Dust-proof, heat-proof, oil-proof and explosion-proof.
Two types available to choose: open type and sealed type.
Small spce occupation, totally sealed structure can effectively avoid dust and harmful gas pollution.
Material can be cooled or dried during the lifting process according to customer's special request.

More technical parameter

Model	Lifting Capability(t/h)	Diameter of Spiral chute(mm)	Lifting width(mm)	Lifting height(m)	Speed(rpm)	Double amplitude (mm)	Power(kw)
SZC-300	-2.0	300	77	≤4.0	960	5-6	2*0.4
SZC-500	-2.0	500	140	≤4.0	960	5-6	2*0.75
SZC-550	-3.0	550	152	≤5.5	960	5-6	2*1.5
SZC-600	-3.0	600	163	≤6.0	960	5-7	2*1.5
SZC-800	-4.0	800	237	≤6.5	960	5-8	2*2.2
SZC-850	-4.0	850	262	≤8.0	960	5-8	2*2.2
SZC-900	-4.0	900	287	≤8.0	960	5-8	2*3.0

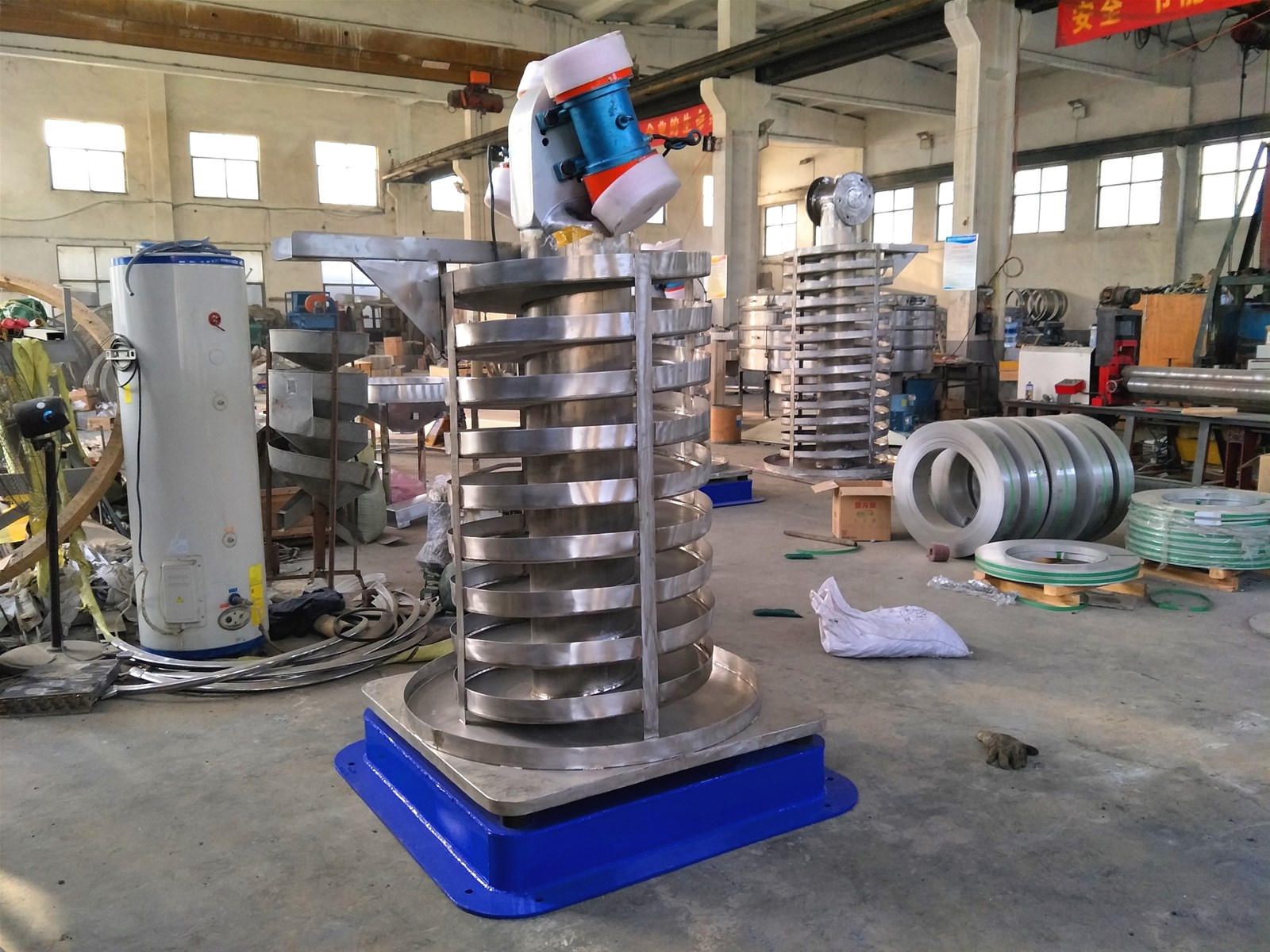

Product Show

Company Information

      Xinxiang Sanyuantang Machine Co.,Ltd.ISO9001 certified enterprise.Our company is located in XINXIANG CITY HENAN PROVINCE CHINA,We are one of leading manufacturer who specialize.
        at present, the main range of products include kinds of series of Vibrating Screen,Conveyor Equipment,Honey Processing Machine,etc.
        We have advanced manufacture equipment, abundant technology power, complete testing measures, strict management system and favorable corporation credit-standing.

Our products

1.Vibrating screening;
2.Conveyor equipment;
3.Honey processing machine;
4.Related equipments and spare parts.

FAQ

Q:this is my first time to import,how can I trust your company and ensure to get the goods if I order from you.

A:We are alibaba legitimate certification company (VIP),and we support payment L/C.Escrow.T/T and so on to ensure your safty.
Q:There are too many models,i don't know which one to choose

A: Welcome to consult our online TradeManager,we will recommend according to your

Demands.If during closing time or weekend,Please send mail to us,we will response within 24 hours.^_^

Thanks for view us with patience!You are always free to inquiry us and we will response asap.

Buying Guides

Tell me the following questions,Then I can send you accurate quotation soon.

Your email address and telephone will not be shared or published!

how could you choose suitable one? Please answer the following questions.

Raw material:                  ;                 kg/m3

the size of raw material:

Capacity:_____t/h

Do you need cooling funcation?

Working power supply: _____V ______HZ___Phase
