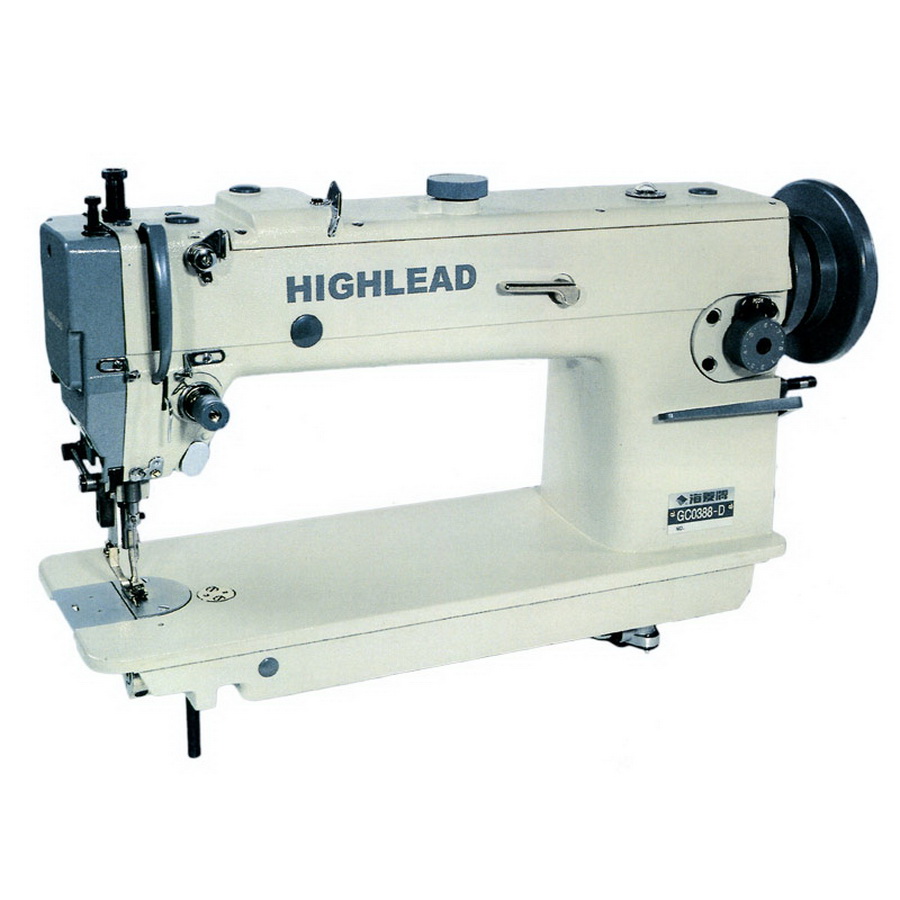

Highlead model GC0388 top and bottom feed machine offers more working space by virtue of its 13 arm design. A lockstitch is formed on heavier materials using a link type feed mechanism, thread take up lever and large rotating hook. the high needle bar stroke and high lift alternating presser foot allow you to stitch heavy materials. Automatic lubrication ensures a long service life. Adjustments are easily made by using the top dial operated presser foot regulator together with the presser foot lever. It can be used in the production of such items as leather bags, suitcases, tents, and sofas made of leather, canvas and all types of heavy fabric.

SPECIFICATIONS

• Max Sewing Speed: 2000 RPM
• Stitch length: 0-8 mm
• Needle Bar Stroke: 38 mm
• Take-up Lever Stroke: 73 mm
• Presser foot lift by hand: 6 mm
• Presser foot lift by knee: 16 mm
• Needle Size: DY x 17 18# - 22#
• Feed Dog: 3 Rows of Teeth
• Rotating Hook: Auto lubricated large hook
• Lubrication: Auto Lubricated
• Motor: 370W Clutch motor 1400 RPM
